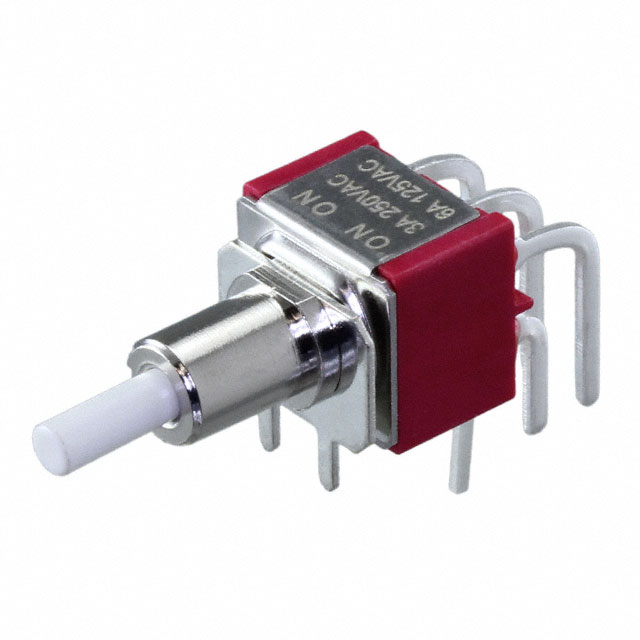

38DDP11B20M6QT

Active

Grayhill Inc.

SWITCH PUSHBUTTON DPDT 6A 125V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH PUSHBUTTON DPDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

SWITCH PUSHBUTTON DPDT 6A 125V

Part	Switch Function	Mounting Type	Actuator Marking	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Voltage Rating - DC	Features	Type	Current Rating (Amps)	Electrical Life	Termination Style	Circuit	Actuator Type
Grayhill Inc. 38DDP11B20M6QT	On-On	Through Hole, Right Angle	No Marking	-30 ░C	85 °C	125 V	28 V	Epoxy Sealed Terminals	Standard	6 A	50000 Cycles	PC Pin	DPDT	Round, Plunger

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 7.02

General part information

Pushbutton Switch DPDT Standard Through Hole, Right Angle
