8KC5-0742-0250
Active3M (TC)

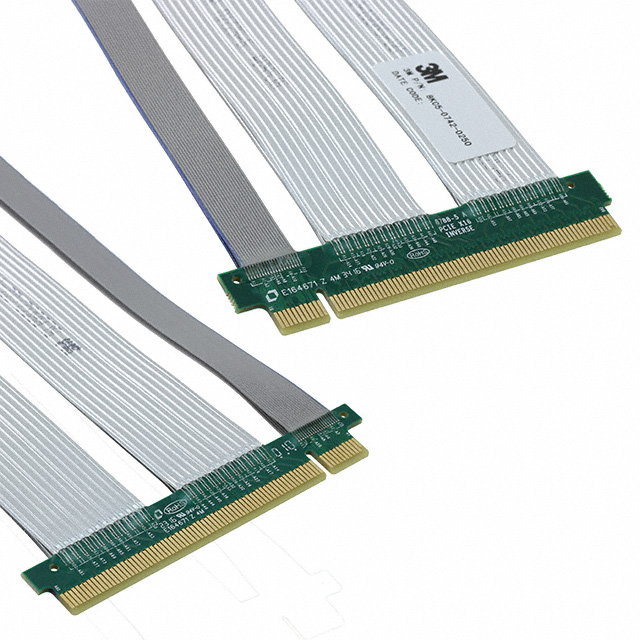

CABLE ASSEMBLY 0.25M 30AWG 82 TO 82 POS PCIE TO PCIE M-M
Deep-Dive with AI
Search across all available documentation for this part.
8KC5-0742-0250
Active3M (TC)
CABLE ASSEMBLY 0.25M 30AWG 82 TO 82 POS PCIE TO PCIE M-M
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 8KC5-0742-0250 |
|---|---|
| Cable Connectors | PCIe x16 |
| Cable Type | Twin Axial, Flat |
| Color | Silver |
| Connector Type | Card Edge to Card Edge |
| Current - Max/Contact | 1.1 A |
| Features | Extender |
| Gender | Male to Male |
| Length [x] | 250 mm |
| Length [x] | 9.84 in |
| Length [x] | 9.843 in |
| Number of Positions | 164 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Shielding | Shielded |
| Usage | Internal |
| Wire Gauge | 30 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 100.96 | |
| 10 | $ 92.65 | |||
| 120 | $ 81.37 | |||
Description
General part information
8KC5 Series
164 Position PCIe x16 Card Edge to Card Edge 0.820' (250.00mm, 9.843") Silver Shielded
