D2U5T-H3-7000-54-HU4C
ActiveMurata Power Solutions Inc.

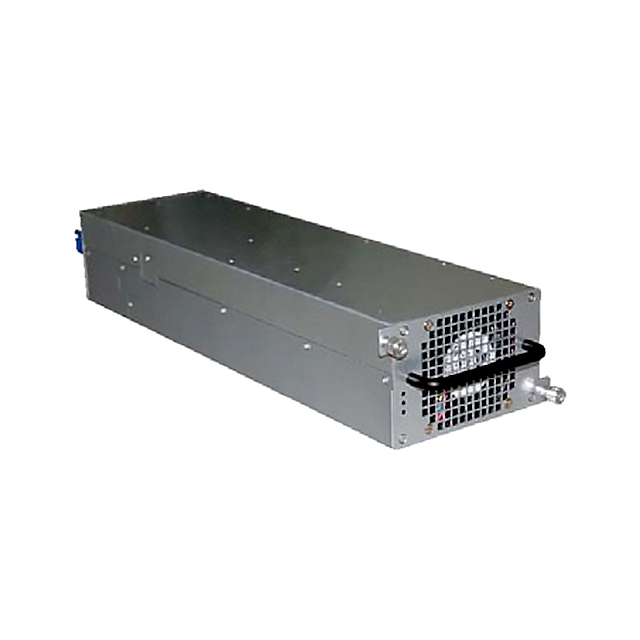

AC/DC FRONT END POWER SUPPLY (PSU), 1 OUTPUT, FIXED, 7 KW, 54 V, 129.6 A
Deep-Dive with AI
Search across all available documentation for this part.
D2U5T-H3-7000-54-HU4C
ActiveMurata Power Solutions Inc.
AC/DC FRONT END POWER SUPPLY (PSU), 1 OUTPUT, FIXED, 7 KW, 54 V, 129.6 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | D2U5T-H3-7000-54-HU4C | D2U5T Series |
|---|---|---|
| Applications | - | ITE (Commercial) |
| Current - Output 1 | - | 129.6 A |
| Efficiency | - | 95 % |
| Features | - | Remote Sense, Hot Swappable, PMBus™, I2C Bus Interface, Load Sharing, PFC, Standby Output |
| Mounting Type | - | Rack Mount |
| null | - | |
| Number of Outputs | - | 1 |
| Power (Watts) | - | 7000 W |
| Size / Dimension | - | 5.1 " |
| Size / Dimension | - | 455.9 mm |
| Size / Dimension | - | 129.6 mm |
| Size / Dimension | - | 77.2 mm |
| Size / Dimension | - | 3.04 in |
| Size / Dimension | - | 18 in |
| Type | - | Front End |
| Voltage - Input | - | 180 - 320 VAC |
| Voltage - Input | - | 264 - 525 VAC |
| Voltage - Isolation | - | 3000 V |
| Voltage - Output 1 | - | 54 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
D2U5T Series
AC/DC FRONT END POWER SUPPLY (PSU), 1 OUTPUT, FIXED, 7 KW, 54 V, 129.6 A
| Part | Features | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Isolation | Number of Outputs | Current - Output 1 | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Efficiency | Type | Voltage - Output 1 | Applications | Mounting Type | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. D2U5T-H3-7000-54-HU4C | Hot Swappable, I2C Bus Interface, Load Sharing, PFC, PMBus™, Remote Sense, Standby Output | 180 VAC, 320 VAC | 264 VAC, 525 VAC | 3000 V | 1 | 129.6 A | 5.1 " | 455.9 mm | 129.6 mm | 77.2 mm | 3.04 in | 18 in | 95 % | Front End | 54 V | ITE (Commercial) | Rack Mount | 7000 W |
Murata Power Solutions Inc. D2U5T-H3-7000-54-HU4C | ||||||||||||||||||
Murata Power Solutions Inc. D2U5T-H3-7000-41-HU3EC |
Description
General part information
D2U5T Series
Front End AC DC Converters 1 Output 54V 180 ~ 264 VAC, 320 ~ 525 VAC (3 Phase) Input
