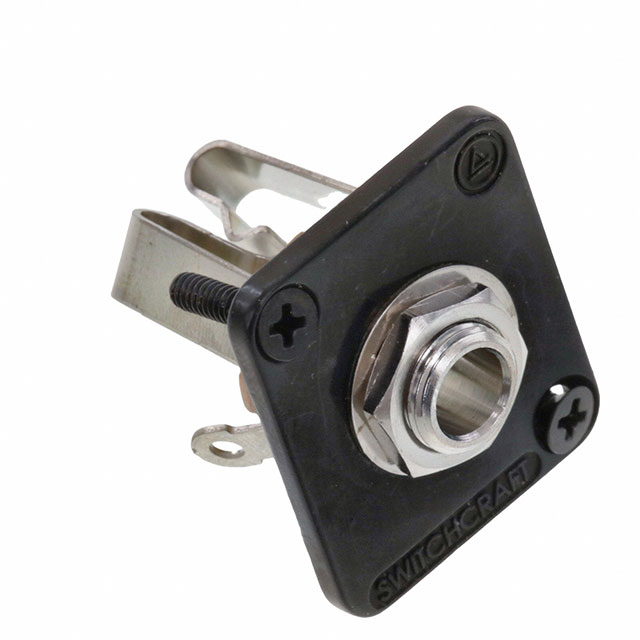

E12BBPKG

Active

Switchcraft Inc.

CONN JACK STEREO 6.35MM PNL MNT

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN JACK STEREO 6.35MM PNL MNT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	E12BBPKG	E12B Series

Actual Diameter [diameter]	0.25 in	0.25 in
Actual Diameter [diameter]	6.35 mm	6.35 mm
Body Color	Silver	Silver
Body Material	Brass	Brass
Connector Type	Phone Jack	Phone Jack
Contact Material	Brass	Brass
Contact Material - Plating [custom]	Nickel	Nickel
Features	Mounting Hardware, Flange	Mounting Hardware, Flange
Gender	Female	Female
Includes	1 Connector, 1 Flange, 1 Nut, 1 Washer, 4 Screws	1 Connector, 1 Nut, 1 Washer, 1 Flange, 4 Screws
Internal Switch(s)	False	False
Number of Positions/Contacts [custom]	3	3
Number of Positions/Contacts [custom]	3	3
Panel Hole Size [diameter]	24 mm	24 mm
Panel Hole Size [diameter]	0.945 in	0.945 in
Shielding	Unshielded	Unshielded
Signal Lines	Stereo	Stereo
Termination	Solder Eyelet(s)	Solder Eyelet(s)

CONN JACK STEREO 6.35MM PNL MNT

Part	Connector Type	Internal Switch(s)	Body Material	Includes	Body Color	Actual Diameter [diameter]	Actual Diameter [diameter]	Shielding	Features	Contact Material - Plating [custom]	Gender	Contact Material	Signal Lines	Panel Hole Size [diameter]	Panel Hole Size [diameter]	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Termination
Switchcraft Inc. E12BB	Phone Jack		Brass	1 Connector, 1 Flange, 1 Nut, 1 Washer	Silver	0.25 in	6.35 mm	Unshielded	Flange, Mounting Hardware	Nickel	Female	Brass	Stereo	24 mm	0.945 in	3	3	Solder Eyelet(s)
Switchcraft Inc. E12BBPKG	Phone Jack		Brass	1 Connector, 1 Flange, 1 Nut, 1 Washer, 4 Screws	Silver	0.25 in	6.35 mm	Unshielded	Flange, Mounting Hardware	Nickel	Female	Brass	Stereo	24 mm	0.945 in	3	3	Solder Eyelet(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

6.35mm (0.250", 1/4") - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder Eyelet(s)
