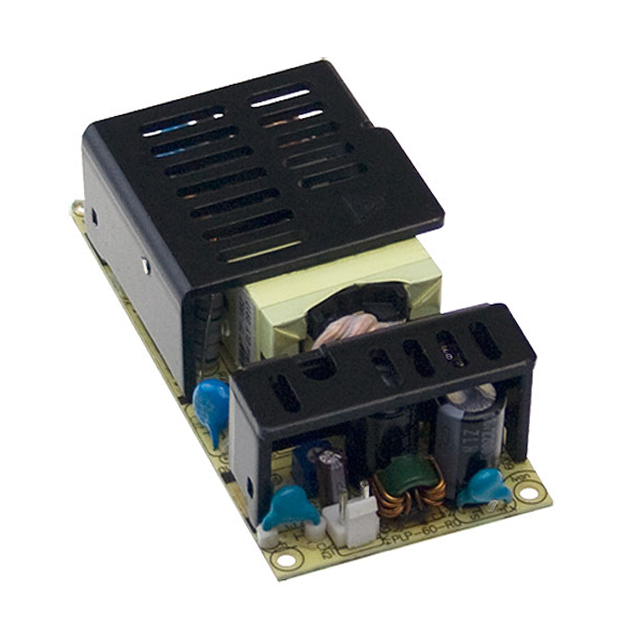

PLP-45-48

MEAN WELL USA Inc.

LED DRVR CC AC/DC 36-48V 950MA

Search across all available documentation for this part.

MEAN WELL USA Inc.

LED DRVR CC AC/DC 36-48V 950MA

Technical Specifications

Parameters and characteristics for this part

Part	Features	Voltage - Output [Max]	Voltage - Output [Min]	Current - Output (Max) [Max]	Type	Power (Watts)	Efficiency	Mounting Type	Voltage - Input (Max) [Max]	Approval Agency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Topology	Termination Style	Voltage - Input (Min) [Min]	Number of Outputs	Voltage - Isolation
MEAN WELL USA Inc. PLP-45-48	OCP OVP SCP	48 V	36 V	950 mA	Constant Current	46 W	89 %	Chassis Mount	264 VAC	CB CCC CE TUV UR	101.6 mm	50.8 mm	1.17 "	101.6 mm	29.6 mm	50.8 mm	70 °C	-30 ░C	AC DC Converter	Rectangular 2 Position	90 VAC	1	3750 V
MEAN WELL USA Inc. PLP-45-24	OCP OVP SCP	24 V	18 V	1.9 A	Constant Current	46 W	89 %	Chassis Mount	264 VAC	CB CCC CE cURus TUV	101.6 mm	50.8 mm	1.17 "	101.6 mm	29.6 mm	50.8 mm	70 °C	-30 ░C	AC DC Converter	Rectangular 2 Position	90 VAC	1	3750 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 17.70

General part information

950mA 36 ~ 48V Constant Current LED Driver AC DC Converter Topology 1 Output
