DX1090 Series

Part	Ratings	Current	Panel Cutout Dimension	Lamp Color	Ingress Protection	Lens Size	Lens Size (Code)	Type	Millicandela Rating	Lens Style	Panel Cutout Shape	Voltage	Termination Style	Millicandela Rating Colors	Millicandela Rating (Green)	Millicandela Rating (Red)	Voltage Color	Voltage (Green)	Voltage (Red)	Current (Red)	Current Colors	Current (Green)	Millicandela Rating (Amber)	Current (Amber)

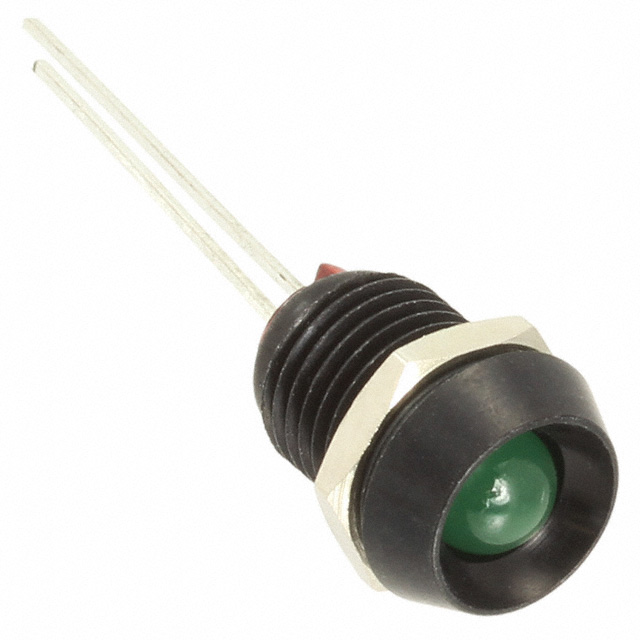

BULGIN LIMITED DX1090/GN	If (Max) Vf (Typ)	25 mA	0.315 "	Green	IP66	5 mm	T-1 3/4	LED	20 mcd	Domed Top Round	Round	2 V	PC Pin
BULGIN LIMITED DX1090/YL	If (Max) Vf (Typ)	30 mA	0.315 "	Yellow	IP66	5 mm	T-1 3/4	LED	20 mcd	Domed Top Round	Round	2.1 V	PC Pin
BULGIN LIMITED DX1090/D1	If (Max) Vf (Typ)		0.315 "	Green Red	IP66	5 mm	T-1 3/4	LED		Domed Top Round	Round		PC Pin	Green Red	5 mcd	4.5 mcd	Green Red	2.2 V	2.2 V	30 mA	Green Red	30 mA
BULGIN LIMITED DX1090/D3	If (Max) Vf (Typ)		0.315 "	Amber Green	IP66	5 mm	T-1 3/4	LED		Domed Top Round	Round	2.2 V	PC Pin	Amber Green	5 mcd		Amber Green	2.2 V			Amber Green	30 mA	4 mcd	20 mA
BULGIN LIMITED DX1090/RD	If (Max) Vf (Typ)	30 mA	0.315 "	Red	IP66	5 mm	T-1 3/4	LED	25 mcd	Domed Top Round	Round	2 V	PC Pin
