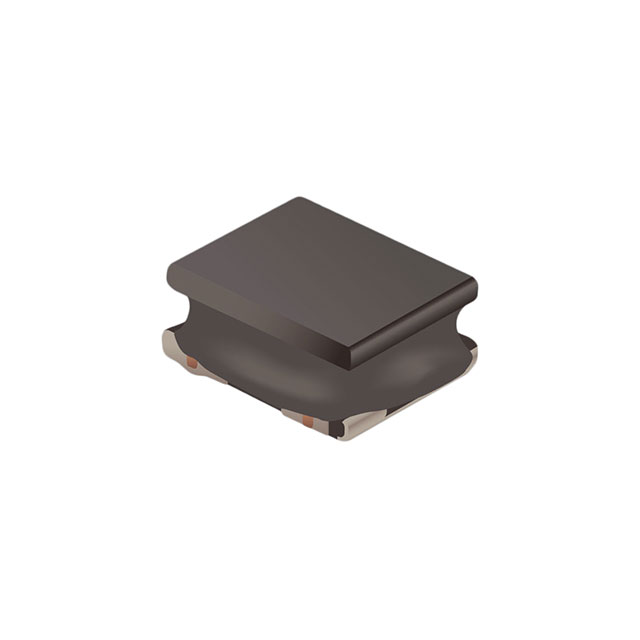

SRN2010TA-6R8M
ActiveBourns Inc.
INDUCTOR, AEC-Q200, 6.8UH, 0.55A, 20%
Deep-Dive with AI
Search across all available documentation for this part.
SRN2010TA-6R8M
ActiveBourns Inc.
INDUCTOR, AEC-Q200, 6.8UH, 0.55A, 20%
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SRN2010TA-6R8M |
|---|---|
| Current - Saturation (Isat) | 720 mA |
| Current Rating (Amps) | 0.55 A |
| DC Resistance (DCR) | 500 mOhm |
| Frequency - Self Resonant | 52 MHz |
| Height - Seated (Max) [Max] | 0.039 " |
| Height - Seated (Max) [Max] | 1 mm |
| Inductance | 6.8 µH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0806 (2016 Metric) |
| Q @ Freq | 14, 1 MHz |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.35 | |
| 10 | $ 0.28 | |||
| 25 | $ 0.25 | |||
| 50 | $ 0.23 | |||
| 100 | $ 0.21 | |||
| 250 | $ 0.19 | |||
| 500 | $ 0.18 | |||
| 1000 | $ 0.17 | |||
| Digi-Reel® | 1 | $ 0.35 | ||
| 10 | $ 0.28 | |||
| 25 | $ 0.25 | |||
| 50 | $ 0.23 | |||
| 100 | $ 0.21 | |||
| 250 | $ 0.19 | |||
| 500 | $ 0.18 | |||
| 1000 | $ 0.17 | |||
| Tape & Reel (TR) | 2000 | $ 0.15 | ||
| 4000 | $ 0.14 | |||
| 6000 | $ 0.14 | |||
| 10000 | $ 0.13 | |||
| 14000 | $ 0.12 | |||
| 20000 | $ 0.12 | |||
| 50000 | $ 0.12 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 0.34 | |
| 10 | $ 0.24 | |||
| 25 | $ 0.23 | |||
| 50 | $ 0.21 | |||
| 100 | $ 0.20 | |||
Description
General part information
SRN2010TA Series
The SRN2010TA-6R8M from Bourns is a SRN2010TA series SMD semi shielded power inductor. It is typically used in applications such as driver assistant, infotainment, lighting DC to DC converters, power supplies, digital video cameras, HDDs, smartphones, televisions and LCD displays.
