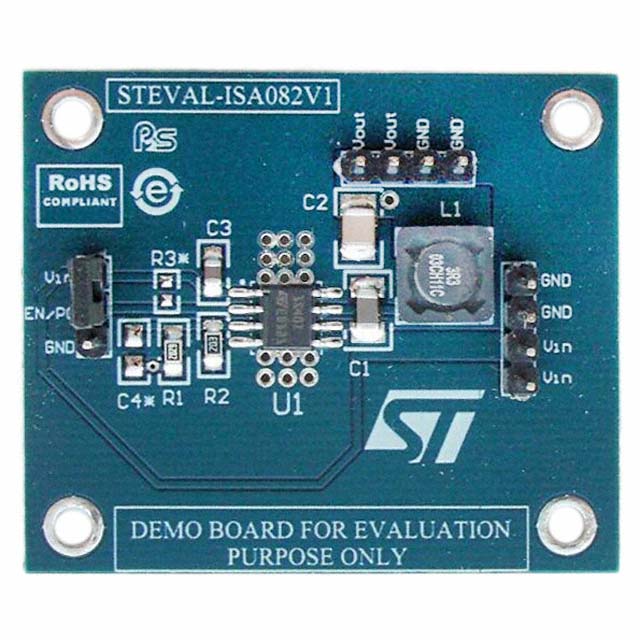

STEVAL-ISA082V1
Obsolete4 A PEAK 800 KHZ FIXED-FREQUENCY PWM SYNCHRONOUS STEP-DOWN DEMONSTRATION BOARD WITH ENABLE ON/OFF BASED ON THE ST1S40IPHR
Deep-Dive with AI
Search across all available documentation for this part.
STEVAL-ISA082V1
Obsolete4 A PEAK 800 KHZ FIXED-FREQUENCY PWM SYNCHRONOUS STEP-DOWN DEMONSTRATION BOARD WITH ENABLE ON/OFF BASED ON THE ST1S40IPHR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | STEVAL-ISA082V1 |
|---|---|
| Contents | Board(s) |
| Current - Output | 4 A |
| Frequency - Switching | 800 kHz |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | 1 Non-Isolated Output |
| Regulator Topology | Buck |
| Utilized IC / Part | ST1S40IPHR |
| Voltage - Input [Max] | 18 V |
| Voltage - Input [Min] | 4 V |
| Voltage - Output | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
STEVAL-ISA082V1 Series
The STEVAL-ISA082V1, based on the ST1S40IPHR, is an internally compensated 800 kHz fixed-frequency PWM synchronous stepdown converter evaluation board.
The ST1S40 operates from 4.0 V to 18.0 V input, while it regulates an output voltage as low as 0.8 V and up to VIN (100% duty cycle).
The ST1S40 integrates a 95 mΩ high-side switch and a 69 mΩ synchronous rectifier allowing very high efficiency with very low output voltage.
