HF100/34TP

Active

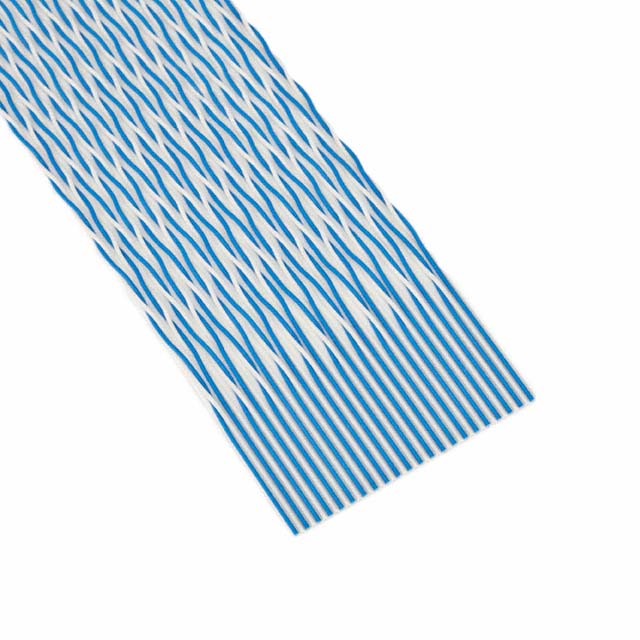

3M TWISTED PAIR FLAT CABLE, HF100 SERIES, HF100/34TP, 100 FT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCables & Accessories Selection Guide Datasheet

HF100/34TP

Active

3M TWISTED PAIR FLAT CABLE, HF100 SERIES, HF100/34TP, 100 FT

Deep-Dive with AI

DocumentsCables & Accessories Selection Guide Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 279.93
		1	$ 71.31
		1	$ 159.49
		5	$ 58.61
		5	$ 130.62
		5	$ 227.98
		10	$ 209.22
		10	$ 53.70
		10	$ 119.80
		25	$ 47.93
		25	$ 191.91
		25	$ 106.08
		50	$ 43.88
		50	$ 96.70
		100	$ 40.13
		100	$ 95.98
Newark	Each	1	$ 589.06
		5	$ 569.74
		10	$ 550.43
		25	$ 508.59
		50	$ 479.62

Description

General part information

HF100 Series

Flat Ribbon Cable Blue, White 34 (17 Pair Twisted) Conductors 0.050" (1.27mm) Flat Twisted Pair 25.0' (7.62m)

Documents

Technical documentation and resources

Cables & Accessories Selection Guide

Datasheet

Specification	HF100/34TP	HF100 Series

Cable Type	Flat Twisted Pair	Flat Twisted Pair
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	7	7
Conductor Strand [custom]	36 AWG	36 AWG
Current Rating (Amps)	1 A	1 A
Features	-	Splice Free
Insulation Resistance	10 GOhm	10 GOhm
Jacket (Insulation) Material	Polyolefin (PO)	Polyolefin (PO)
Jacket Color	White, Blue	White, Blue
Length	15.24 m, 7.62 m	7.62 - 15.24 m
Length	50 ft, 25 ft	25 - 50 ft
Length	-	Enter Number of Feet in Order Quantity
Length [x]	3.05 m	3.05 - 30.48 m
Length [x]	10 ft	10 - 100 ft
Number of Conductors	34	10 - 64
Number of Conductors	-	30 (15 Pair Twisted)
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.05 in	0.05 in
Pitch [x]	1.27 mm	1.27 mm
Ratings	UL Style 21008	UL Style 21008
Ribbon Thickness	0.07 "	0.07 "
Ribbon Thickness	1.78 mm	1.78 mm
Ribbon Width	-	1 - 74.93 in
Ribbon Width	-	25.4 mm
Ribbon Width	-	1.3 - 2.5 "
Ribbon Width	-	0.7 - 2.95 in
Ribbon Width	-	17.78 mm
Ribbon Width	-	0.5 "
Ribbon Width	-	12.7 mm
Ribbon Width [y]	1.7 in	0.8 - 3.2 in
Ribbon Width [y]	43.18 mm	20.32 - 81.28 mm
Shielding	Unshielded	Unshielded
Spool Size	-	30.48 m
Spool Size	-	100 ft
Voltage	150 V	150 V
Wire Gauge	28 AWG	28 AWG

Part

Voltage

Shielding

Jacket Color

Ribbon Thickness

Operating Temperature [Min]

Operating Temperature [Max]

Conductor Material

Length [x]

Jacket (Insulation) Material

Insulation Resistance

Wire Gauge

Conductor Strand [custom]

Ribbon Width [y]

Current Rating (Amps)

Number of Conductors

Ratings

Pitch [x]

Cable Type

Ribbon Width

Length

Ribbon Width

Ribbon Width [x]

Features

Spool Size

Length

Ribbon Width [custom]

Number of Conductors

HF100/16TP

150 V

Unshielded

Blue, White

0.07 "

1.78 mm

-40 °C

105 ░C

Copper, Tinned

100 ft

30.48 m

Polyolefin (PO)

10 GOhm

28 AWG

36 AWG

20.32 mm

0.8 in

1 A

UL Style 21008

0.05 in

1.27 mm

Flat Twisted Pair

HF100/20TP

150 V

Unshielded

Blue, White

0.07 "

1.78 mm

-40 °C

105 ░C

Copper, Tinned

Polyolefin (PO)

10 GOhm

28 AWG

36 AWG

1 A

UL Style 21008

0.05 in

1.27 mm

Flat Twisted Pair

1 in

25.4 mm

15.24 m

50 ft

HF100/26TP

150 V

Unshielded

Blue, White

0.07 "

1.78 mm

-40 °C

105 ░C

Copper, Tinned

10 ft, 100 ft

3.05 m, 30.48 m

Polyolefin (PO)

10 GOhm

28 AWG

36 AWG

1 A

UL Style 21008

0.05 in

1.27 mm

Flat Twisted Pair

33.02 mm

15.24 m

50 ft

1.3 "

HF100/60TP

150 V

Unshielded

Blue, White

0.07 "

1.78 mm

-40 °C

105 ░C

Copper, Tinned

10 ft, 100 ft

3.05 m, 30.48 m

Polyolefin (PO)

10 GOhm

28 AWG

36 AWG

1 A

UL Style 21008

0.05 in

1.27 mm

Flat Twisted Pair

74.93 mm

7.62 m

25 ft

2.95 in

HF100/14TP

150 V

Unshielded

Blue, White

0.07 "

1.78 mm

-40 °C

105 ░C

Copper, Tinned

Polyolefin (PO)

10 GOhm

28 AWG

36 AWG

1 A

UL Style 21008

0.05 in

1.27 mm

Flat Twisted Pair

7.62 m

25 ft

0.7 in

17.78 mm

HF100/50TPSF

150 V

Unshielded

Blue, White

0.07 "

1.78 mm

-40 °C

105 ░C

Copper, Tinned

Polyolefin (PO)

10 GOhm

28 AWG

36 AWG

1 A

0.05 in

1.27 mm

Flat Twisted Pair

63.5 mm

2.5 "

Splice Free

HF100/40TP

150 V

Unshielded

Blue, White

0.07 "

1.78 mm

-40 °C

105 ░C

Copper, Tinned

Polyolefin (PO)

10 GOhm

28 AWG

36 AWG

50.8 mm

2 in

1 A

UL Style 21008

0.05 in

1.27 mm

Flat Twisted Pair

7.62 m

25 ft

HF100/64TP

150 V

Unshielded

Blue, White

0.07 "

1.78 mm

-40 °C

105 ░C

Copper, Tinned

10 ft

3.05 m

Polyolefin (PO)

10 GOhm

28 AWG

36 AWG

81.28 mm

3.2 in

1 A

UL Style 21008

0.05 in

1.27 mm

Flat Twisted Pair

7.62 m

25 ft

30.48 m

100 ft

Enter Number of Feet in Order Quantity

HF100/34TP

150 V

Unshielded

Blue, White

0.07 "

1.78 mm

-40 °C

105 ░C

Copper, Tinned

10 ft

3.05 m

Polyolefin (PO)

10 GOhm

28 AWG

36 AWG

43.18 mm

1.7 in

1 A

UL Style 21008

0.05 in

1.27 mm

Flat Twisted Pair

7.62 m, 15.24 m

25 ft, 50 ft

HF100/10TP

150 V

Unshielded

Blue, White

0.07 "

1.78 mm

-40 °C

105 ░C

Copper, Tinned

100 ft

30.48 m

Polyolefin (PO)

10 GOhm

28 AWG

36 AWG

1 A

UL Style 21008

0.05 in

1.27 mm

Flat Twisted Pair

7.62 m

25 ft

0.5 "

12.7 mm

Part	Voltage	Shielding	Jacket Color	Ribbon Thickness	Ribbon Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Length [x]	Length [x]	Jacket (Insulation) Material	Insulation Resistance	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Ribbon Width [y]	Ribbon Width [y]	Current Rating (Amps)	Number of Conductors	Ratings	Pitch [x]	Pitch [x]	Cable Type	Ribbon Width	Ribbon Width	Length	Length	Ribbon Width	Ribbon Width [x]	Ribbon Width [x]	Features	Spool Size	Spool Size	Length	Ribbon Width [custom]	Ribbon Width [custom]
3M HF100/16TP	150 V	Unshielded	Blue, White	0.07 "	1.78 mm	-40 °C	105 ░C	Copper, Tinned	100 ft	30.48 m	Polyolefin (PO)	10 GOhm	28 AWG	7	36 AWG	20.32 mm	0.8 in	1 A	16	UL Style 21008	0.05 in	1.27 mm	Flat Twisted Pair
3M HF100/20TP	150 V	Unshielded	Blue, White	0.07 "	1.78 mm	-40 °C	105 ░C	Copper, Tinned			Polyolefin (PO)	10 GOhm	28 AWG	7	36 AWG			1 A	20	UL Style 21008	0.05 in	1.27 mm	Flat Twisted Pair	1 in	25.4 mm	15.24 m	50 ft
3M HF100/26TP	150 V	Unshielded	Blue, White	0.07 "	1.78 mm	-40 °C	105 ░C	Copper, Tinned	10 ft, 100 ft	3.05 m, 30.48 m	Polyolefin (PO)	10 GOhm	28 AWG	7	36 AWG			1 A	26	UL Style 21008	0.05 in	1.27 mm	Flat Twisted Pair	33.02 mm		15.24 m	50 ft	1.3 "
3M HF100/60TP	150 V	Unshielded	Blue, White	0.07 "	1.78 mm	-40 °C	105 ░C	Copper, Tinned	10 ft, 100 ft	3.05 m, 30.48 m	Polyolefin (PO)	10 GOhm	28 AWG	7	36 AWG			1 A	60	UL Style 21008	0.05 in	1.27 mm	Flat Twisted Pair	74.93 mm		7.62 m	25 ft		2.95 in
3M HF100/14TP	150 V	Unshielded	Blue, White	0.07 "	1.78 mm	-40 °C	105 ░C	Copper, Tinned			Polyolefin (PO)	10 GOhm	28 AWG	7	36 AWG			1 A	14	UL Style 21008	0.05 in	1.27 mm	Flat Twisted Pair			7.62 m	25 ft		0.7 in	17.78 mm
3M HF100/50TPSF	150 V	Unshielded	Blue, White	0.07 "	1.78 mm	-40 °C	105 ░C	Copper, Tinned			Polyolefin (PO)	10 GOhm	28 AWG	7	36 AWG			1 A	50		0.05 in	1.27 mm	Flat Twisted Pair	63.5 mm				2.5 "			Splice Free
3M HF100/40TP	150 V	Unshielded	Blue, White	0.07 "	1.78 mm	-40 °C	105 ░C	Copper, Tinned			Polyolefin (PO)	10 GOhm	28 AWG	7	36 AWG	50.8 mm	2 in	1 A	40	UL Style 21008	0.05 in	1.27 mm	Flat Twisted Pair			7.62 m	25 ft
3M HF100/64TP	150 V	Unshielded	Blue, White	0.07 "	1.78 mm	-40 °C	105 ░C	Copper, Tinned	10 ft	3.05 m	Polyolefin (PO)	10 GOhm	28 AWG	7	36 AWG	81.28 mm	3.2 in	1 A	64	UL Style 21008	0.05 in	1.27 mm	Flat Twisted Pair			7.62 m	25 ft					30.48 m	100 ft	Enter Number of Feet in Order Quantity
3M HF100/34TP	150 V	Unshielded	Blue, White	0.07 "	1.78 mm	-40 °C	105 ░C	Copper, Tinned	10 ft	3.05 m	Polyolefin (PO)	10 GOhm	28 AWG	7	36 AWG	43.18 mm	1.7 in	1 A	34	UL Style 21008	0.05 in	1.27 mm	Flat Twisted Pair			7.62 m, 15.24 m	25 ft, 50 ft
3M HF100/10TP	150 V	Unshielded	Blue, White	0.07 "	1.78 mm	-40 °C	105 ░C	Copper, Tinned	100 ft	30.48 m	Polyolefin (PO)	10 GOhm	28 AWG	7	36 AWG			1 A	10	UL Style 21008	0.05 in	1.27 mm	Flat Twisted Pair			7.62 m	25 ft								0.5 "	12.7 mm
