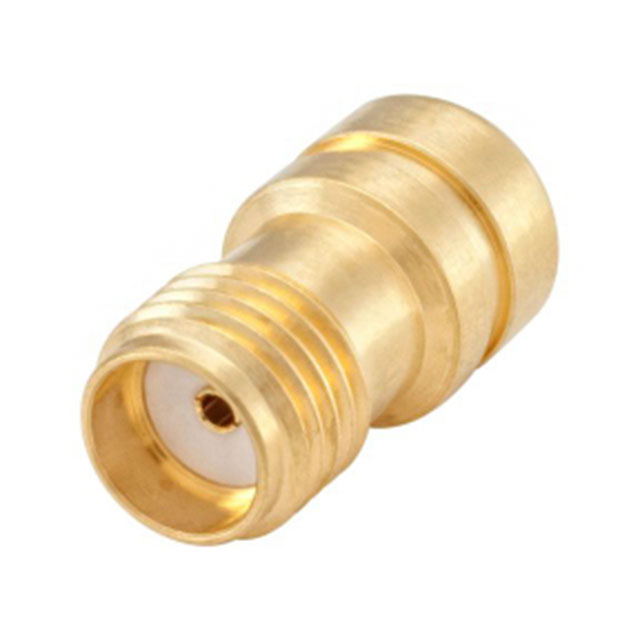

32K15R-001E3
ActiveRosenberger
RF/MICROWAVE TERMINATION, 0MHZ MIN, 12400MHZ MAX, 50OHM,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 32K15R-001E3 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Connector Style | SMA |
| Connector Type | Female Socket, Jack |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 12.4 GHz |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging, Cap |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 28.55 | |
| 10 | $ 25.00 | |||
| 25 | $ 23.92 | |||
| 50 | $ 23.15 | |||
| 100 | $ 22.38 | |||
| 300 | $ 21.14 | |||
Description
General part information
32K15R Series
Terminator Coax Connector Jack, Female Socket SMA 50 Ohms
