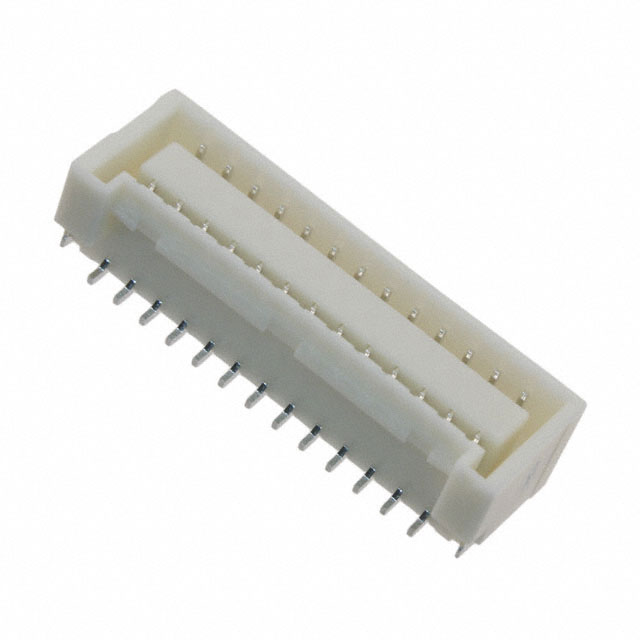

Specification	BM26B-ZPDSS-TF

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Outer Shroud Contact
Current Rating	2 A
Fastening Type	Locking Ramp
Features	Solder Retention
Insulation Color	Natural
Insulation Height	0.219 in
Insulation Material	Nylon, Polyamide (PA)
Mated Stacking Height	9.5 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Pitch - Mating	0.059 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	100 VAC

BM26B-ZP Series

Part	Style	Voltage Rating	Number of Positions Loaded	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Contact Material	Connector Type	Material Flammability Rating	Pitch - Mating	Contact Finish - Post	Shrouding	Fastening Type	Number of Positions	Current Rating	Features	Insulation Material	Contact Shape	Termination	Number of Rows	Contact Finish - Mating	Contact Type	Insulation Color	Insulation Height	Mated Stacking Height
JST Sales America Inc. BM26B-ZPDSS-TF	Board Cable/Wire	100 VAC	All	85 °C	-25 °C	Surface Mount	Copper Alloy	Header	UL94 V-0	0.059 in	Tin	Shrouded - 4 Wall	Locking Ramp	26	2 A	Solder Retention	Nylon Polyamide (PA)	Rectangular	Solder	2	Tin	Outer Shroud Contact	Natural	0.219 in	9.5 mm
