Specification	MHMF011L1U2

Approval Agency	cURus, CE, cULus
Diameter - Shaft	0.315 in
Encoder Type	Absolute
Features	Key
Function	Servomotor
Length - Shaft and Bearing	0.984 in
Mounting Hole Spacing	1.811 in
Operating Temperature (Max)	55 °C
Operating Temperature (Min)	0 °C
Power - Rated	100 W
RPM	3000 RPM
Size / Dimension Length	1.575 in
Size / Dimension Shape	Square
Size / Dimension Width	1.575 in
Termination Style	Cable with Connector
Torque - Max Momentary (mNm)	1110 mNm
Torque - Max Momentary (oz-in)	157.2 oz-in
Torque - Rated (mNm)	320 mNm
Torque - Rated (oz-in)	45.32 oz-in
Type	AC Motor
Voltage - Rated	100 VAC/DC
Weight	0.882 lb

MHMF011 Series

Part	Approval Agency	Voltage - Rated	Termination Style	Torque - Rated (mNm)	Torque - Rated (oz-in)	Function	Diameter - Shaft	Encoder Type	Mounting Hole Spacing	Features	Length - Shaft and Bearing	Power - Rated	Size / Dimension Width	Size / Dimension Shape	Size / Dimension Length	Operating Temperature (Max)	RPM	Type	Torque - Max Momentary (oz-in)	Torque - Max Momentary (mNm)	Weight
Panasonic Industrial Automation Sales MHMF011L1U1	CE cULus cURus	100 VAC/DC	Cable with Connector	320 mNm	45.32 oz-in	Servomotor	0.339 in	Absolute	1.811 in	Key Oil Seal	0.984 in	100 W	1.575 in	Square	1.575 in	55 °C	3000 RPM	AC Motor	157.2 oz-in	1110 mNm
Panasonic Industrial Automation Sales MHMF011L1V3	CE cULus cURus	100 VAC/DC	Cable with Connector	320 mNm	45.32 oz-in	Servomotor	0.339 in	Absolute	1.811 in	Brake Key	0.984 in	100 W	1.575 in	Square	1.575 in	55 °C	3000 RPM	AC Motor	157.2 oz-in	1110 mNm
Panasonic Industrial Automation Sales MHMF011L1A1	CE cULus cURus	100 VAC/DC	Cable with Connector	320 mNm	45.32 oz-in	Servomotor	0.339 in	Absolute	1.811 in		0.984 in	100 W	1.575 in	Square	1.575 in	55 °C	3000 RPM	AC Motor	157.2 oz-in	1110 mNm

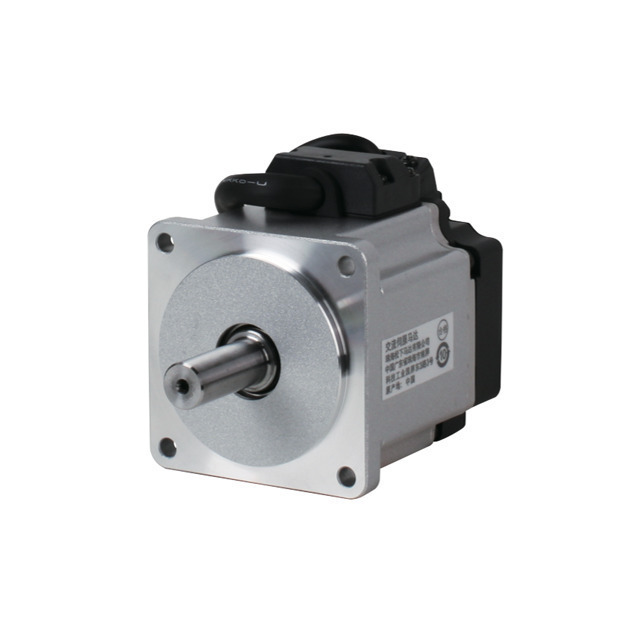

Panasonic Industrial Automation Sales MHMF011L1T2	CE cULus cURus	100 VAC/DC	Cable with Connector	320 mNm	45.32 oz-in	Servomotor	0.339 in	Absolute	1.811 in	Brake Key	0.984 in	100 W	1.575 in	Square	1.575 in	55 °C	3000 RPM	AC Motor	157.2 oz-in	1110 mNm
Panasonic Industrial Automation Sales MHMF011L1C2	CE cULus cURus	100 VAC/DC	Cable with Connector	320 mNm	45.32 oz-in	Servomotor	0.339 in	Absolute	1.811 in	Oil Seal	0.984 in	100 W	1.575 in	Square	1.575 in	55 °C	3000 RPM	AC Motor	157.2 oz-in	1110 mNm
Panasonic Industrial Automation Sales MHMF011L1U2	CE cULus cURus	100 VAC/DC	Cable with Connector	320 mNm	45.32 oz-in	Servomotor	0.315 in	Absolute	1.811 in	Key	0.984 in	100 W	1.575 in	Square	1.575 in	55 °C	3000 RPM	AC Motor	157.2 oz-in	1110 mNm	0.882 lb
Panasonic Industrial Automation Sales MHMF011L1D2	CE cULus cURus	100 VAC/DC	Cable with Connector	320 mNm	45.32 oz-in	Servomotor	0.339 in	Absolute	1.811 in	Brake	0.984 in	100 W	1.575 in	Square	1.575 in	55 °C	3000 RPM	AC Motor	157.2 oz-in	1110 mNm
Panasonic Industrial Automation Sales MHMF011L1S2	CE cULus cURus	100 VAC/DC	Cable with Connector	320 mNm	45.32 oz-in	Servomotor	0.339 in	Absolute	1.811 in	Key	0.984 in	100 W	1.575 in	Square	1.575 in	55 °C	3000 RPM	AC Motor	157.2 oz-in	1110 mNm
Panasonic Industrial Automation Sales MHMF011L1D1	CE cULus cURus	100 VAC/DC	Cable with Connector	320 mNm	45.32 oz-in	Servomotor	0.339 in	Absolute	1.811 in	Brake	0.984 in	100 W	1.575 in	Square	1.575 in	55 °C	3000 RPM	AC Motor	157.2 oz-in	1110 mNm
Panasonic Industrial Automation Sales MHMF011L1S1	CE cULus cURus	100 VAC/DC	Cable with Connector	320 mNm	45.32 oz-in	Servomotor	0.339 in	Absolute	1.811 in	Key	0.984 in	100 W	1.575 in	Square	1.575 in	55 °C	3000 RPM	AC Motor	157.2 oz-in	1110 mNm
