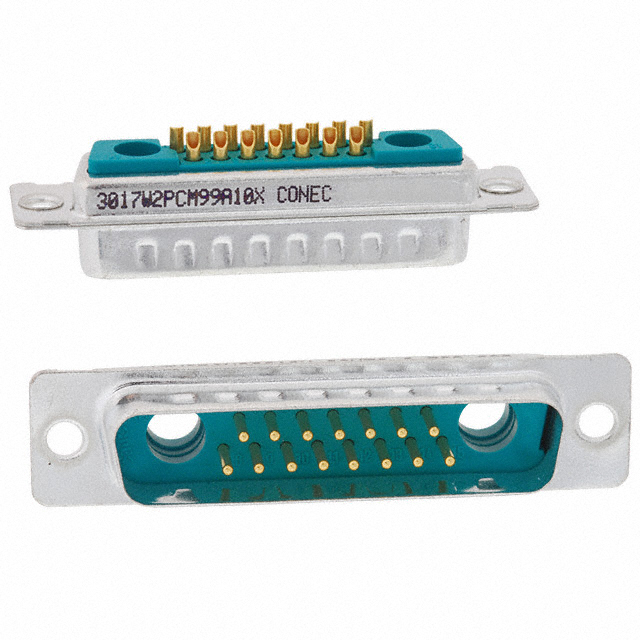

3017W2PCM99A10X

Active

Amphenol CONEC

CONN D-SUB PLUG 17POS SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3017W2PCM99A10X

Active

Amphenol CONEC

CONN D-SUB PLUG 17POS SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3017W2PCM99A10X

Color	Green
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Free Hanging (In-Line)
Number of Positions	17
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	17W2, 3 (DB, B)

3017W2P Series

Part	Contact Finish	Contact Material	Mounting Type	Shell Size, Connector Layout	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Rows	Current Rating (Amps)	Features	Voltage Rating	Backset Spacing	Backset Spacing	Color	Flange Feature	Termination	Dielectric Material	Material Flammability Rating	Number of Positions	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge	Contact Type	Wire Gauge [Max]	Wire Gauge [Min]	Number of Positions [custom]	Number of Positions [custom]
Amphenol CONEC 3017W2PAT99N20X	Gold	Copper Alloy	Through Hole Right Angle	17W2 3 (DB B)	-55 °C	125 °C	Male Pins Plug	2	7.5 A	Grounding Indents Mounting Brackets	250 VDC	0.283 in	7.2 mm	Green	Housing/Shell (4-40)	Solder	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	17	Combo D-Sub
Amphenol CONEC 3017W2PAR99E20X	Gold	Copper Alloy	Through Hole	17W2 3 (DB B)	-55 °C	125 °C	Male Pins Plug	2	7.5 A	Board Lock Grounding Indents	250 VDC			Green	4-40 Board Side	Solder	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	17	Combo D-Sub	Flash
Amphenol CONEC 3017W2PCM99A10X	Gold		Free Hanging (In-Line)	17W2 3 (DB B)	-55 °C	125 °C	Male Pins Plug	2	5 A					Green	Housing/Shell (Unthreaded)		Polybutylene Terephthalate (PBT) Glass Filled		17	Combo D-Sub		0.76 Ám	30 Áin
Amphenol CONEC 3017W2PAM99A10X	Gold	Copper Alloy	Free Hanging (In-Line)	17W2 3 (DB B)	-55 °C	125 °C	Male Pins Plug	2	7.5 A	Grounding Indents	250 VDC			Green	Housing/Shell (Unthreaded)		Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	17	Combo D-Sub		0.203 çm	8 çin	20 AWG
Amphenol CONEC 3017W2PXK99A60X				17W2 3 (DB B)			Plug for Male Contacts
Amphenol CONEC 3017W2PAT59N40X							Male Pins Plug
Amphenol CONEC 3017W2PAT73N30X							Male Pins Plug
Amphenol CONEC 3017W2PAM62A10X	Gold	Copper Alloy	Free Hanging (In-Line)	17W2 3 (DB B)	-55 °C	125 °C	Male Pins Plug	2	7.5 A 20 A	Grounding Indents	250 VDC			Green	Housing/Shell (Unthreaded)		Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0		Combo D-Sub	Flash				Signal and Power	14 AWG	12 AWG	15	2
Amphenol CONEC 3017W2PAT99P20X	Gold	Copper Alloy	Board Edge Right Angle Through Hole	17W2 3 (DB B)	-55 °C	125 °C	Male Pins Plug	2	7.5 A	Grounding Indents Mounting Brackets	250 VDC	0.283 in	7.2 mm	Green	4-40	Solder	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	17	Combo D-Sub	Flash
Amphenol CONEC 3017W2PAM61A10X							Male Pins Plug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 13.13
		10	$ 11.64
		25	$ 11.19
		50	$ 10.74
		100	$ 10.15
		250	$ 9.25
		450	$ 8.66
		950	$ 7.94

Description

General part information

3017W2P Series

17 (15 + 2 Coax or Power) Position D-Sub, Combo Plug, Male Pins Connector
