R162403000

Active

Radiall USA, Inc.

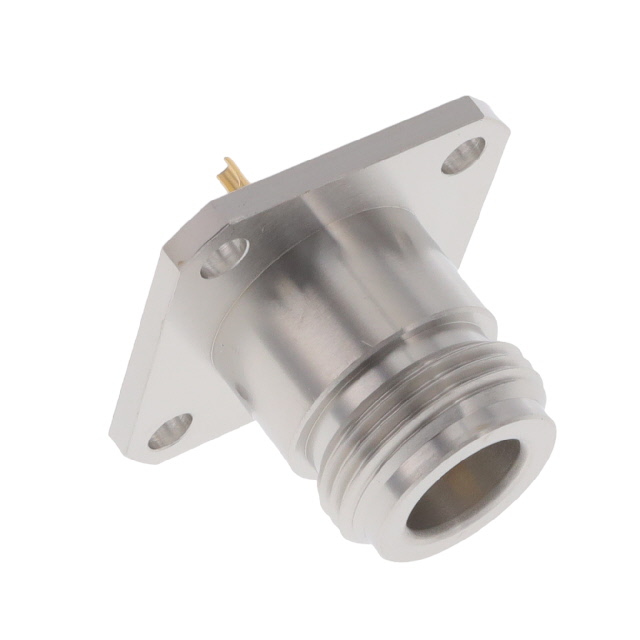

RF N CONNECTOR, FEMALE, PANEL MOUNT, SOLDER TERMINAL, RECEPTACLE,

Search across all available documentation for this part.

Active

Radiall USA, Inc.

RF N CONNECTOR, FEMALE, PANEL MOUNT, SOLDER TERMINAL, RECEPTACLE,

Technical Specifications

Parameters and characteristics for this part

Specification	R162403000

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	1.5 GHz
Housing Color	Silver
Impedance	75 Ohms
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	850 V

Part	Insertion Loss	Body Finish	Housing Color	Connector Type	Connector Style	Number of Ports	Mating Cycles	Frequency - Max [Max]	Dielectric Material	Voltage Rating	Contact Termination	Impedance	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Shield Termination	Center Contact Plating	Center Contact Material	Mounting Feature
Radiall USA, Inc. R162403000	0.15 dB	White Bronze	Silver	Female Socket Jack	N Type	1	500	1.5 GHz	Polytetrafluoroethylene (PTFE)	850 V	Solder Cup	75 Ohms	155 °C	-55 °C	Brass	Solder	Gold	Beryllium Copper	Flange

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Jack, Female Socket 75 Ohms Panel Mount Solder Cup
