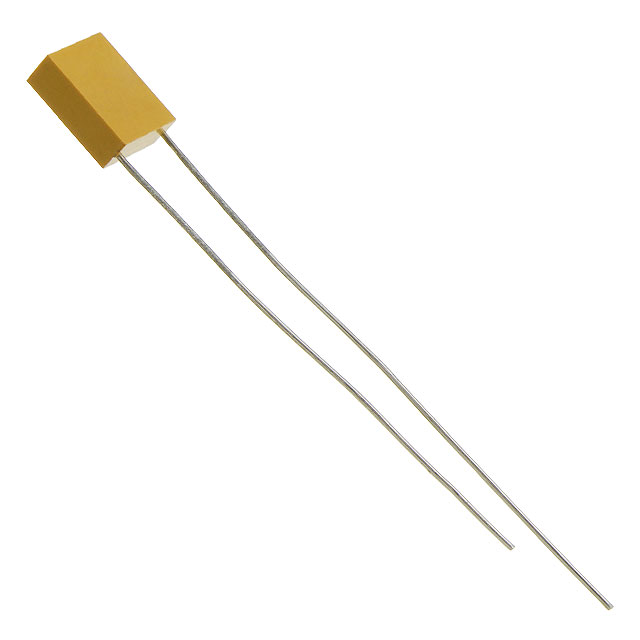

T378D226K010AS
ActiveKEMET
TANTALUM CAPACITOR, POLARIZED, TANTALUM (DRY/SOLID), 10V, 10% +TOL, 10% -TOL, 22UF, THROUGH HOLE MOUNT, 2211, RADIAL LEADED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T378D226K010AS
ActiveKEMET
TANTALUM CAPACITOR, POLARIZED, TANTALUM (DRY/SOLID), 10V, 10% +TOL, 10% -TOL, 22UF, THROUGH HOLE MOUNT, 2211, RADIAL LEADED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | T378D226K010AS |
|---|---|
| Capacitance | 22 µF |
| Features | High Reliability |
| Grade | Military |
| Height - Seated (Max) [Max] | 7.37 mm |
| Height - Seated (Max) [Max] [z] | 0.29 " |
| Lead Spacing | 0.18 in |
| Lead Spacing | 4.57 mm |
| Manufacturer Size Code | D |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial |
| Qualification | MIL-PRF-49137/6 |
| Size / Dimension [x] | 5.59 mm, 0.22 " |
| Size / Dimension [y] | 0.11 ", 2.79 mm |
| Tolerance | 10 % |
| Type | Molded |
| Voltage - Rated | 10 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 200 | $ 3.38 | |
Description
General part information
T378D Series
22 µF Molded Tantalum Capacitors 10 V Radial
