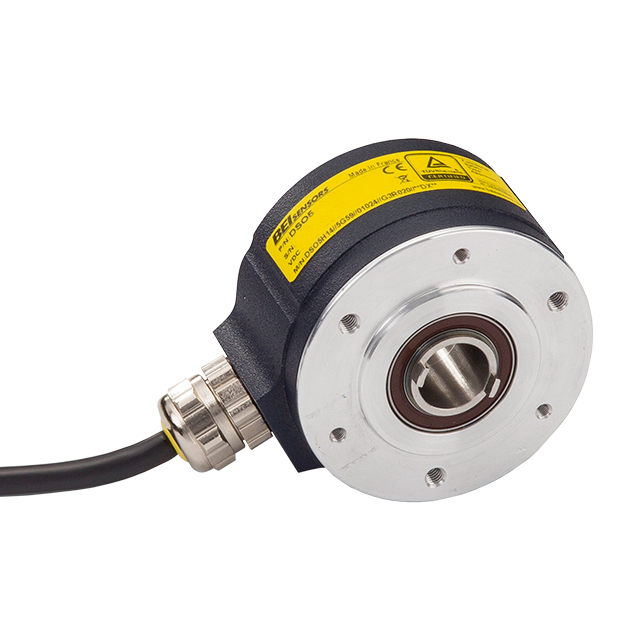

DSO514-1024-011

Obsolete

Sensata-BEI Sensors

ROTARY ENCODR INCREMENT 1024PPR

Search across all available documentation for this part.

Obsolete

Sensata-BEI Sensors

ROTARY ENCODR INCREMENT 1024PPR

Technical Specifications

Parameters and characteristics for this part

Specification	DSO514-1024-011

Actuator Type	Hole for Shaft
Built in Switch	False
Detent	False
Encoder Type	Incremental
Mounting Type	Servo Mount
Orientation	Vertical
Pulses per Revolution	1024
Rotational Life (Cycles Min) [Min]	29.1B
Termination Style	PC Pin
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	11 V

Part	Encoder Type	Orientation	Built in Switch	Voltage - Supply [Min]	Voltage - Supply [Max]	Detent	Termination Style	Pulses per Revolution	Mounting Type	Actuator Type	Rotational Life (Cycles Min) [Min]
Sensata-BEI Sensors DSO514-1024-011	Incremental	Vertical		11 V	30 VDC		PC Pin	1024	Servo Mount	Hole for Shaft	29.1B
Sensata-BEI Sensors DSO514-1024-015	Incremental	User Selectable		11 V	30 VDC		Connector	1024	Chassis Mount	Shaft	29.7B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 806.22

General part information

ROTARY ENCODR INCREMENT 1024PPR
