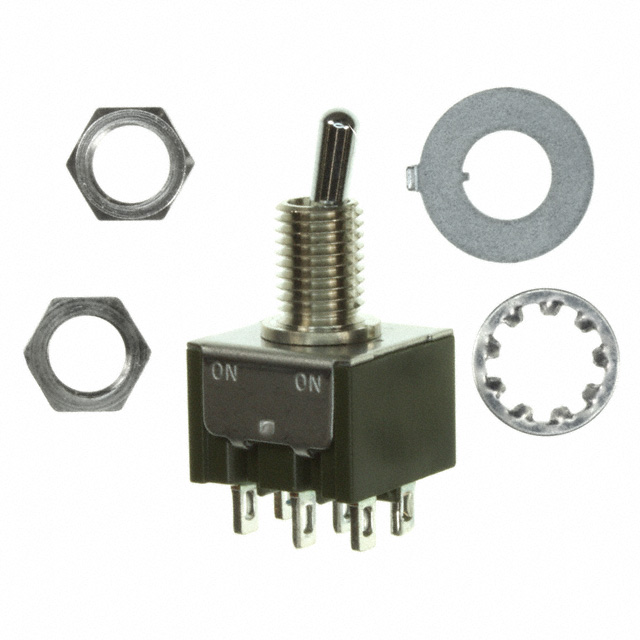

M2022S3S4W01

Obsolete

NKK Switches

BUSHING MOUNT MINIATURE TOGGLE SWITCH; POLES: DPDT; CIRCUITS: ON-ON; CURRENT RATING: 6A (AC), 4A (DC); RATING (AC): 125V; RATING (DC): 30V; ACTUATOR TYPE: STANDARD ROUND; ACTUATOR LENGTH: 6.50MM; ILLUMINATION: NON-ILLUMINATED; MOUNTING TYPE: PANEL MOUNT; TERMINATION STYLE: SOLDER LUG; PANEL CUTOUT DIMENSIONS: CIRCULAR - 6.50MM DIA; BUSHING THREAD: M6 X 0.75; FEATURES: EPOXY SEALED TERMINALS; RATING: 6

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M2022S3S4W01

Obsolete

NKK Switches

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M2022S3S4W01

Actuator Length [x]	6.5 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	M6 x 0.75
Circuit	DPDT
Current Rating (Amps)	4 A, 6 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

M2022S3 Series

Part	Voltage Rating - DC	Termination Style	Electrical Life	Mounting Type	Features	Current Rating (Amps)	Actuator Type	Voltage Rating - AC	Actuator Material	Switch Function	Circuit	Illumination	Panel Cutout Dimensions [diameter]	Bushing Thread	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Length [x]
NKK Switches M2022S3A2G13	28 V	PC Pin	50000 Cycles	Through Hole	Epoxy Sealed Terminals	0.4 VA	Standard Round	28 V	Brass Chrome Plated	On-On	DPDT	Non-Illuminated	6.5 mm	Unthreaded	-30 ░C	85 °C	6.5 mm
NKK Switches M2022S3A2W40	30 V	PC Pin	25000 Steps	Right Angle Through Hole Vertical	Epoxy Sealed Terminals	4 A 6 A	Standard Round	125 V	Brass Chrome Plated	On-On	DPDT	Non-Illuminated	6.5 mm	Unthreaded	-30 ░C	85 °C	8.28 mm
NKK Switches M2022S3S1W03	30 V	PC Pin	25000 Steps		Epoxy Sealed Terminals	4 A 6 A	Standard Round	125 V	Brass Chrome Plated	On-On	DPDT	Non-Illuminated	6.5 mm	1/4-40	-30 ░C	85 °C	6.5 mm
NKK Switches M2022S3S4W01	30 V	Solder Lug	25000 Steps		Epoxy Sealed Terminals	4 A 6 A	Standard Round	125 V	Brass Chrome Plated	On-On	DPDT	Non-Illuminated	6.5 mm	M6 x 0.75	-30 ░C	85 °C	6.5 mm
NKK Switches M2022S3A1W03	30 V	PC Pin	25000 Steps		Epoxy Sealed Terminals	4 A 6 A	Standard Round	125 V	Brass Chrome Plated	On-On	DPDT	Non-Illuminated	6.5 mm	1/4-40	-30 ░C	85 °C	8.28 mm
NKK Switches M2022S3S2W30	30 V	PC Pin	25000 Steps	Through Hole Right Angle	Epoxy Sealed Terminals	4 A 6 A	Standard Round	125 V	Brass Chrome Plated	On-On	DPDT	Non-Illuminated	6.5 mm	Unthreaded	-30 ░C	85 °C	6.5 mm
NKK Switches M2022S3S1W40	30 V	PC Pin	25000 Steps	Panel Mount Right Angle Vertical	Epoxy Sealed Terminals	4 A 6 A	Standard Round	125 V	Brass Chrome Plated	On-On	DPDT	Non-Illuminated	6.5 mm	1/4-40	-30 ░C	85 °C	6.5 mm
NKK Switches M2022S3S1W01	30 V	Solder Lug	25000 Steps		Epoxy Sealed Terminals	4 A 6 A	Standard Round	125 V	Brass Chrome Plated	On-On	DPDT	Non-Illuminated	6.5 mm	1/4-40	-30 ░C	85 °C	6.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.29
		10	$ 4.57
		25	$ 4.31
		50	$ 4.12
		100	$ 3.94
		250	$ 3.71

Description

General part information

M2022S3 Series

Toggle Switch DPDT Panel Mount
