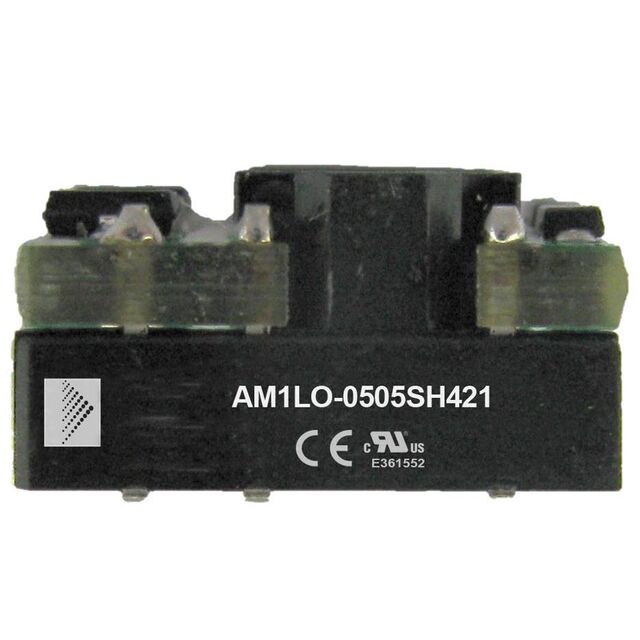

AM1LO-0505SH421

Active

aimtec

DC DC CONVERTER 5V 1W

Search across all available documentation for this part.

Active

aimtec

DC DC CONVERTER 5V 1W

Technical Specifications

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 3.3V 1W

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Current - Output (Max) [Max]	Approval Agency	Efficiency	Voltage - Input (Max) [Max]	Mounting Type	Voltage - Output 1	Number of Outputs	Voltage - Input (Min) [Min]	Type	Applications	Package / Case
aimtec AM1LO-0503SH421	-40 °C	105 C	4.2 kV	303 mA	CE, cURus	76 %	5.5 V	Surface Mount	3.3 V	1	4.5 V	Isolated Module	ITE (Commercial)	8-SMD Module, 5 Leads
aimtec AM1LO-0505SH421	-40 °C	105 C	4.2 kV	200 mA	CE, cURus	76 %	5.5 V	Surface Mount	5 V	1	4.5 V	Isolated Module	ITE (Commercial)	8-SMD Module, 5 Leads
aimtec AM1LO-0505SH421TR	-40 °C	105 ░C	4.2 kV	200 mA	CE, cURus, UL	76 %	5.5 V	Surface Mount	5 V	1	4.5 V	Isolated Module	ITE (Commercial)	SMD
aimtec AM1LO-0303SH421TR	-40 °C	105 ░C	4.2 kV	303 mA	CE, cURus, UL	73 %	3.63 V	Surface Mount	3.3 V	1	2.97 V	Isolated Module	ITE (Commercial)	SMD

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
