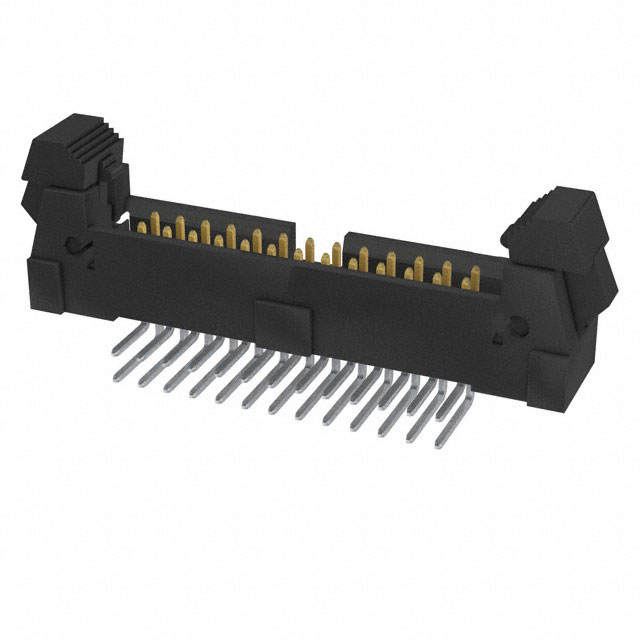

EHT-113-01-S-D-RA-SR

Active

Samtec Inc.

CONN HEADER R/A 26POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

EHT-113-01-S-D-RA-SR

Active

Samtec Inc.

CONN HEADER R/A 26POS 2MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EHT-113-01-S-D-RA-SR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Lock/Eject Hooks
Features	Strain Relief, Keying Slot
Insulation Color	Black
Insulation Height [z]	0.3 in
Insulation Height [z]	7.62 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

EHT-113 Series

Part	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Finish - Post	Insulation Height	Insulation Height	Contact Type	Style	Contact Length - Mating	Contact Length - Mating	Contact Material	Connector Type	Material Flammability Rating	Contact Shape	Contact Finish - Mating	Insulation Color	Termination	Number of Positions	Insulation Material	Mounting Type	Shrouding	Contact Length - Post	Contact Length - Post	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height [z]	Insulation Height [z]
Samtec Inc. EHT-113-01-S-D-SM-LC	All	0.079 in	2 mm	Latch Lock/Eject Hooks	Board Lock Keying Slot	30 Áin	0.76 Ám	0.079 in	2 mm	2	-55 °C	125 °C	3 A	Tin	0.37 in	9.4 mm	Male Pin	Board to Cable/Wire	3.05 mm	0.12 in	Phosphor Bronze	Header	UL94 V-0	Square	Gold	Black	Solder	26	Liquid Crystal Polymer (LCP)	Surface Mount	Shrouded - 4 Wall
Samtec Inc. EHT-113-01-L-D-SR	All	0.079 in	2 mm	Latch Lock/Eject Hooks	Keying Slot Strain Relief	15 µin	0.38 µm	0.079 in	2 mm	2	-55 °C	125 °C	3 A	Tin	0.37 in	9.4 mm	Male Pin	Board to Cable/Wire	3.05 mm	0.12 in	Phosphor Bronze	Header	UL94 V-0	Square	Gold	Black	Solder	26	Liquid Crystal Polymer (LCP)	Through Hole	Shrouded - 4 Wall	0.114 in	2.9 mm
Samtec Inc. EHT-113-01-L-D-SM-SR	All	0.079 in	2 mm	Latch Lock/Eject Hooks	Keying Slot Strain Relief	15 µin	0.38 µm	0.079 in	2 mm	2	-55 °C	125 °C	3 A	Tin	0.37 in	9.4 mm	Male Pin	Board to Cable/Wire	3.05 mm	0.12 in	Phosphor Bronze	Header	UL94 V-0	Square	Gold	Black	Solder	26	Liquid Crystal Polymer (LCP)	Surface Mount	Shrouded - 4 Wall
Samtec Inc. EHT-113-01-F-D-SM	All	0.079 in	2 mm	Latch Lock/Eject Hooks	Keying Slot	3 µin	0.076 µm	0.079 in	2 mm	2	-55 °C	125 °C	3 A	Tin	0.37 in	9.4 mm	Male Pin	Board to Cable/Wire	3.05 mm	0.12 in	Phosphor Bronze	Header	UL94 V-0	Square	Gold	Black	Solder	26	Liquid Crystal Polymer (LCP)	Surface Mount	Shrouded - 4 Wall
Samtec Inc. EHT-113-01-S-D-SM-LC-K-TR	All	0.079 in	2 mm	Latch Lock/Eject Hooks	Board Lock Keying Slot Pick and Place	30 Áin	0.76 Ám	0.079 in	2 mm	2	-55 °C	125 °C	3 A	Tin	0.37 in	9.4 mm	Male Pin	Board to Cable/Wire	3.05 mm	0.12 in	Phosphor Bronze	Header	UL94 V-0	Square	Gold	Black	Solder	26	Liquid Crystal Polymer (LCP)	Surface Mount	Shrouded - 4 Wall
Samtec Inc. EHT-113-01-F-D	All	0.079 in	2 mm	Latch Lock/Eject Hooks	Keying Slot	3 µin	0.076 µm	0.079 in	2 mm	2	-55 °C	125 °C	3 A	Tin	0.37 in	9.4 mm	Male Pin	Board to Cable/Wire	3.05 mm	0.12 in	Phosphor Bronze	Header	UL94 V-0	Square	Gold	Black	Solder	26	Liquid Crystal Polymer (LCP)	Through Hole	Shrouded - 4 Wall	0.114 in	2.9 mm
Samtec Inc. EHT-113-01-F-D-RA-SR	All	0.079 in	2 mm	Latch Lock/Eject Hooks	Keying Slot Strain Relief	3 µin	0.076 µm	0.079 in	2 mm	2	-55 °C	125 °C	3 A	Tin			Male Pin	Board to Cable/Wire	3.05 mm	0.12 in	Phosphor Bronze	Header	UL94 V-0	Square	Gold	Black	Solder	26	Liquid Crystal Polymer (LCP)	Through Hole Right Angle	Shrouded - 4 Wall			0.12 in	3.05 mm	0.3 in	7.62 mm
Samtec Inc. EHT-113-01-S-D-SM-K-TR	All	0.079 in	2 mm	Latch Lock/Eject Hooks	Keying Slot Pick and Place	30 Áin	0.76 Ám	0.079 in	2 mm	2	-55 °C	125 °C	3 A	Tin	0.37 in	9.4 mm	Male Pin	Board to Cable/Wire	3.05 mm	0.12 in	Phosphor Bronze	Header	UL94 V-0	Square	Gold	Black	Solder	26	Liquid Crystal Polymer (LCP)	Surface Mount	Shrouded - 4 Wall
Samtec Inc. EHT-113-01-F-D-SM-LC	All	0.079 in	2 mm	Latch Lock/Eject Hooks	Board Lock Keying Slot	3 µin	0.076 µm	0.079 in	2 mm	2	-55 °C	125 °C	3 A	Tin	0.37 in	9.4 mm	Male Pin	Board to Cable/Wire	3.05 mm	0.12 in	Phosphor Bronze	Header	UL94 V-0	Square	Gold	Black	Solder	26	Liquid Crystal Polymer (LCP)	Surface Mount	Shrouded - 4 Wall
Samtec Inc. EHT-113-01-S-D-RA-SR	All	0.079 in	2 mm	Latch Lock/Eject Hooks	Keying Slot Strain Relief	30 Áin	0.76 Ám	0.079 in	2 mm	2	-55 °C	125 °C	3 A	Tin			Male Pin	Board to Cable/Wire	3.05 mm	0.12 in	Phosphor Bronze	Header	UL94 V-0	Square	Gold	Black	Solder	26	Liquid Crystal Polymer (LCP)	Through Hole Right Angle	Shrouded - 4 Wall			0.12 in	3.05 mm	0.3 in	7.62 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	12	$ 14.71

Description

General part information

EHT-113 Series

Connector Header Through Hole, Right Angle 26 position 0.079" (2.00mm)

Documents

Technical documentation and resources

No documents available
