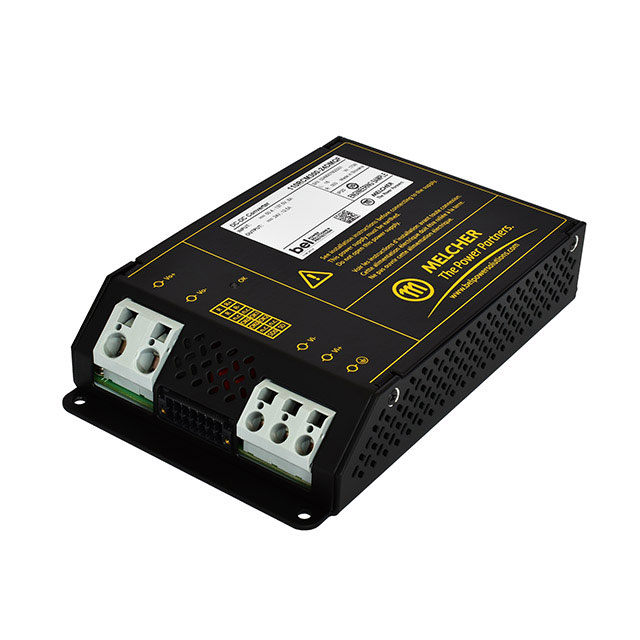

110RCM300-24

Active

Bel Power Solutions

DC/DC CONVERTER 24V 300W

Search across all available documentation for this part.

Active

Bel Power Solutions

DC/DC CONVERTER 24V 300W

Technical Specifications

Parameters and characteristics commom to parts in this series

DC/DC CONVERTER 24V 300W

Part	Applications	Efficiency	Mounting Type	Power (Watts)	Approval Agency	Current - Output (Max) [Max]	Number of Outputs	Voltage - Output 1	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Type	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [z]
Bel Power Solutions 110RCM300-24	ITE (Commercial), Railway	93.5 %	Chassis Mount	300 W	CE	12.5 A	1	24 V	137.5 V	50.4 V	4.2 kV	38.1 mm	116.1 mm	1.5 "	4.57 in	7.43 in	188.7 mm	Conformal Coated, Enclosed	-40 °C	70 °C
Bel Power Solutions 110RCM300-12DMQF	ITE (Commercial), Railway	91 %	Chassis Mount	300 W	CE, NEMKO	25 A	1	12 V	137.5 V	50.4 V	4.2 kV			1.5 "	4.57 in	7.43 in	188.6 mm	Enclosed	-40 °C	70 °C	116 mm	38 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	8	$ 417.38

General part information

Enclosed, Conformal Coated DC DC Converter 1 Output 24V 12.5A 137.5V Input

Technical documentation and resources

No documents available
