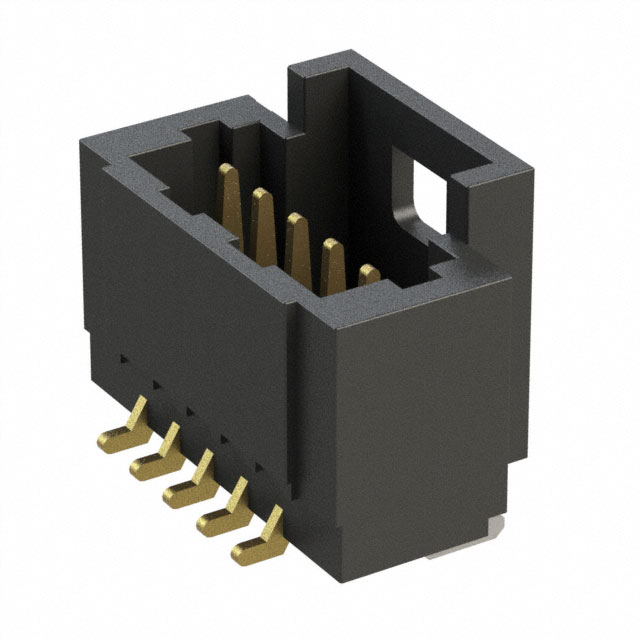

T1M-05-F-SV-L

Active

Samtec Inc.

WTB CONN, HEADER, 5POS, 1ROW, 1MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsT1M Datasheet T1M Series Other Related Documents 03 +2

T1M-05-F-SV-L

Active

Samtec Inc.

WTB CONN, HEADER, 5POS, 1ROW, 1MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsT1M Datasheet T1M Series Other Related Documents 03 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T1M-05-F-SV-L

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.3 A
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height [custom]	5.51 mm
Insulation Height [custom]	0.217 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC, 353 VDC

T1M-05 Series

Part	Fastening Type	Material Flammability Rating	Contact Type	Voltage Rating	Number of Positions Loaded	Insulation Material	Style	Insulation Height	Insulation Height	Contact Shape	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Contact Finish - Post	Number of Rows	Contact Finish - Mating	Connector Type	Termination	Insulation Color	Mounting Type	Pitch - Mating	Pitch - Mating	Insulation Height [custom]	Insulation Height [custom]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features
Samtec Inc. T1M-05-GF-S-RA-TR	Locking Ramp	UL94 V-0	Male Pin	250 VAC 353 VDC	All	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	4.6 mm	0.181 in	Square	Shrouded - 4 Wall	3 µin	0.076 µm	Phosphor Bronze	85 °C	-55 °C	3.3 A	Tin	1	Gold	Header	Solder	Black	Surface Mount Right Angle	0.039 in	1 mm
Samtec Inc. T1M-05-F-SV-L	Locking Ramp	UL94 V-0	Male Pin	250 VAC 353 VDC	All	Liquid Crystal Polymer (LCP)	Board to Cable/Wire			Square	Shrouded - 4 Wall	3 µin	0.076 µm	Phosphor Bronze	85 °C	-55 °C	3.3 A	Tin	1	Gold	Header	Solder	Natural	Surface Mount	0.039 in	1 mm	5.51 mm	0.217 in
Samtec Inc. T1M-05-T-S-RA-TR	Locking Ramp	UL94 V-0	Male Pin	250 VAC 353 VDC	All	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	4.6 mm	0.181 in	Square	Shrouded - 4 Wall			Phosphor Bronze	85 °C	-55 °C	3.3 A	Tin	1		Header	Solder	Black	Surface Mount Right Angle	0.039 in	1 mm
Samtec Inc. T1M-05-F-SH-L	Locking Ramp	UL94 V-0	Male Pin	250 VAC 353 VDC	All	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	4.6 mm	0.181 in	Square	Shrouded - 4 Wall	3 µin	0.076 µm	Phosphor Bronze	85 °C	-55 °C	3.3 A	Tin	1	Gold	Header	Solder	Natural	Surface Mount Right Angle	0.039 in	1 mm
Samtec Inc. T1M-05-GF-S-V-TR	Locking Ramp	UL94 V-0	Male Pin	250 VAC 353 VDC	All	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	4.25 mm	0.167 in	Square	Shrouded - 4 Wall	3 µin	0.076 µm	Phosphor Bronze	85 °C	-55 °C	3.3 A	Gold	1	Gold	Header	Solder	Natural	Surface Mount	0.039 in	1 mm			3 µin	0.076 µm
Samtec Inc. T1M-05-GF	Locking Ramp	UL94 V-0	Male Pin	250 VAC 353 VDC	All	Liquid Crystal Polymer (LCP)	Board to Cable/Wire			Square	Shrouded - 4 Wall	3 µin	0.076 µm	Phosphor Bronze	85 °C	-55 °C	3.3 A	Gold	1	Gold	Header	Solder	Natural		0.039 in	1 mm			3 µin	0.076 µm
Samtec Inc. T1M-05-T-SV-L-P	Locking Ramp	UL94 V-0	Male Pin	250 VAC 353 VDC	All	Liquid Crystal Polymer (LCP)	Board to Cable/Wire			Square	Shrouded - 4 Wall			Phosphor Bronze	85 °C	-55 °C	3.3 A	Tin	1		Header	Solder	Natural	Surface Mount	0.039 in	1 mm	5.51 mm	0.217 in			Pick and Place
Samtec Inc. T1M-05-T-S-V-K-TR	Locking Ramp	UL94 V-0	Male Pin	250 VAC 353 VDC	All	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	4.25 mm	0.167 in	Square	Shrouded - 4 Wall			Phosphor Bronze	85 °C	-55 °C	3.3 A	Tin	1		Header	Solder	Natural	Surface Mount	0.039 in	1 mm					Pick and Place
Samtec Inc. T1M-05-T-SH	Locking Ramp	UL94 V-0	Male Pin	250 VAC 353 VDC	All	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	4.6 mm	0.181 in	Square	Shrouded - 4 Wall			Phosphor Bronze	85 °C	-55 °C	3.3 A	Tin	1		Header	Solder	Natural	Surface Mount Right Angle	0.039 in	1 mm
Samtec Inc. T1M-05-T	Locking Ramp	UL94 V-0	Male Pin	250 VAC 353 VDC	All	Liquid Crystal Polymer (LCP)	Board to Cable/Wire			Square	Shrouded - 4 Wall			Phosphor Bronze	85 °C	-55 °C	3.3 A	Tin	1		Header	Solder	Natural		0.039 in	1 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.00
		50	$ 2.45
		100	$ 2.08
	Digi-Reel®	1	$ 3.00
		50	$ 2.45
		100	$ 2.08
	Tape & Reel (TR)	825	$ 1.85
		1650	$ 1.73
Newark	Each	1	$ 2.50
		10	$ 2.37
		100	$ 2.00
		500	$ 1.69
		1000	$ 1.44
		2500	$ 1.33
		5000	$ 1.29
