LTS-4802BJS-H1

Active

Diodes Inc

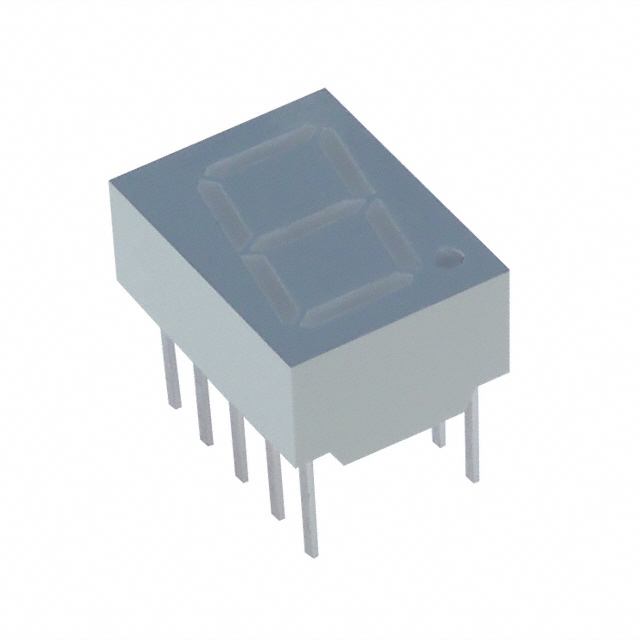

DISPLAY 7SEG 0.39" SGL YLW 10DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LTS-4802BJS-H1

Active

Diodes Inc

DISPLAY 7SEG 0.39" SGL YLW 10DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LTS-4802BJS-H1

Color	Yellow
Common Pin	Common Anode
Current - Test	20 mA
Digit/Alpha Size	0.39 in
Digit/Alpha Size	10 mm
Display Type	7-Segment
Millicandela Rating	0.65 mcd
Number of Characters [custom]	1
Power Dissipation (Max) [Max]	40 mW
Size / Dimension [x]	0.508 in
Size / Dimension [x]	12.9 mm
Size / Dimension [y]	9.7 mm
Size / Dimension [y]	0.382 in
Size / Dimension [z]	6.1 mm
Size / Dimension [z]	0.24 "
Voltage - Forward (Vf) (Typ)	2.05 V
Wavelength - Peak	588 nm

LTS-4802 Series

Part	Millicandela Rating	Current - Test	Color	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Number of Characters [custom]	Power Dissipation (Max) [Max]	Display Type	Common Pin	Digit/Alpha Size	Digit/Alpha Size	Voltage - Forward (Vf) (Typ)	Wavelength - Peak
Diodes Inc LTS-4802BJS-H1	0.65 mcd	20 mA	Yellow	6.1 mm	9.7 mm	0.382 in	0.24 "	0.508 in	12.9 mm	1	40 mW	7-Segment	Common Anode	0.39 in	10 mm	2.05 V	588 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.34
		36	$ 0.80
		108	$ 0.70
		504	$ 0.60
		1008	$ 0.57
		2016	$ 0.54
		5004	$ 0.51
		10008	$ 0.49

Description

General part information

LTS-4802 Series

Display Modules - LED Character and Numeric Yellow 7-Segment 1 Character Common Anode 2.05V 20mA 0.508" H x 0.382" W x 0.240" D (12.90mm x 9.70mm x 6.10mm) 10-DIP (0.300", 7.62mm)
