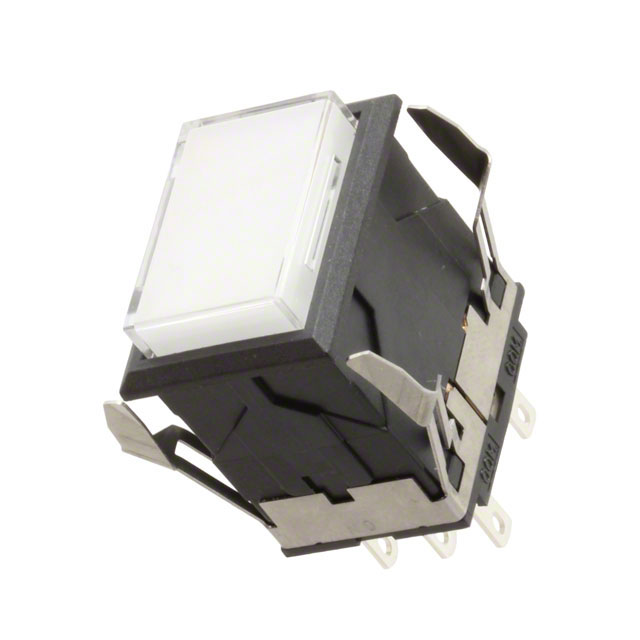

LB26RKW01-6G-JB

Active

NKK Switches

STANDARD SIZE PANEL SEAL PUSHBUTTON

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LB26RKW01-6G-JB

Active

NKK Switches

STANDARD SIZE PANEL SEAL PUSHBUTTON

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LB26RKW01-6G-JB

Actuator Marking	No Marking
Actuator Type	Rectangular, Button
Circuit	DPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	3 A
Electrical Life	100000 Cycles
Illumination Type, Color	LED, Blue
Illumination Voltage (Nominal)	3.6 VDC
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	22.4 mm
Panel Cutout Dimensions [y]	16.2 mm
Switch Function	On-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

LB26RKW Series

Part	Voltage Rating - DC	Electrical Life	Actuator Type	Circuit	Voltage Rating - AC	Current Rating (Amps)	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Termination Style	Termination Style	Switch Function	Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Actuator Marking	Color - Actuator/Cap	Mechanical Life	Illumination Type, Color	Illumination Voltage (Nominal)
NKK Switches LB26RKW01-A	30 V	100000 Cycles	Rectangular Button	DPDT	125 V	3 A	Panel Mount Snap-In	70 °C	-25 °C	0.11 in	Quick Connect Solder	2.8 mm	On-On	Standard	22.4 mm	16.2 mm	No Marking	Black	200000 Cycles
NKK Switches LB26RKW01-6B-JB	30 V	100000 Cycles	Rectangular Button	DPDT	125 V	3 A	Panel Mount Snap-In	50 °C	-25 °C	0.11 in	Quick Connect Solder	2.8 mm	On-On	Illuminated Standard	22.4 mm	16.2 mm	No Marking	Clear	200000 Cycles	LED White	3.3 VDC
NKK Switches LB26RKW01-5C24-JB	30 V	100000 Cycles	Rectangular Button	DPDT	125 V	3 A	Panel Mount Snap-In	50 °C	-25 °C	0.11 in	Quick Connect Solder	2.8 mm	On-On	Illuminated Standard	22.4 mm	16.2 mm	No Marking	Clear	200000 Cycles	LED Red	24 V
NKK Switches LB26RKW01-5C-JB	30 V	100000 Cycles	Rectangular Button	DPDT	125 V	3 A	Panel Mount Snap-In	50 °C	-25 °C	0.11 in	Quick Connect Solder	2.8 mm	On-On	Illuminated Standard	22.4 mm	16.2 mm	No Marking	Clear	200000 Cycles	LED Red	1.9 VDC
NKK Switches LB26RKW01-6G-JB	30 V	100000 Cycles	Rectangular Button	DPDT	125 V	3 A	Panel Mount Snap-In	50 °C	-25 °C	0.11 in	Quick Connect Solder	2.8 mm	On-On	Illuminated Standard	22.4 mm	16.2 mm	No Marking	Clear	200000 Cycles	Blue LED	3.6 VDC
NKK Switches LB26RKW01-5F05-JB	30 V	100000 Cycles	Rectangular Button	DPDT	125 V	3 A	Panel Mount Snap-In	50 °C	-25 °C	0.11 in	Quick Connect Solder	2.8 mm	On-On	Illuminated Standard	22.4 mm	16.2 mm	No Marking	Clear	200000 Cycles	Green LED	5 VDC
NKK Switches LB26RKW01-5F24-JB	30 V	100000 Cycles	Rectangular Button	DPDT	125 V	3 A	Panel Mount Snap-In	50 °C	-25 °C	0.11 in	Quick Connect Solder	2.8 mm	On-On	Illuminated Standard	22.4 mm	16.2 mm	No Marking	Clear	200000 Cycles	Green LED	24 V
NKK Switches LB26RKW01-5D12-JB	30 V	100000 Cycles	Rectangular Button	DPDT	125 V	3 A	Panel Mount Snap-In	50 °C	-25 °C	0.11 in	Quick Connect Solder	2.8 mm	On-On	Illuminated Standard	22.4 mm	16.2 mm	No Marking	Clear	200000 Cycles	Amber LED	12 VDC
NKK Switches LB26RKW01-5F12-JF	30 V	100000 Cycles	Rectangular Button	DPDT	125 V	3 A	Panel Mount Snap-In	50 °C	-25 °C	0.11 in	Quick Connect Solder	2.8 mm	On-On	Illuminated Standard	22.4 mm	16.2 mm	No Marking	Clear	200000 Cycles	Green LED	12 VDC
NKK Switches LB26RKW01-JB	30 V	100000 Cycles	Rectangular Button	DPDT	125 V	3 A	Panel Mount Snap-In	70 °C	-25 °C	0.11 in	Quick Connect Solder	2.8 mm	On-On	Standard	22.4 mm	16.2 mm	No Marking	Clear	200000 Cycles

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 27.09
		10	$ 23.37
		25	$ 22.03
		40	$ 21.38
		80	$ 20.44
		230	$ 19.09
		440	$ 18.31
Newark	Each	1	$ 46.30
		5	$ 41.29
		10	$ 39.88
		25	$ 37.68
		50	$ 35.07
		100	$ 31.07
		250	$ 27.86

Description

General part information

LB26RKW Series

Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Snap-In
