09120032774

Active

HARTING Technology Group

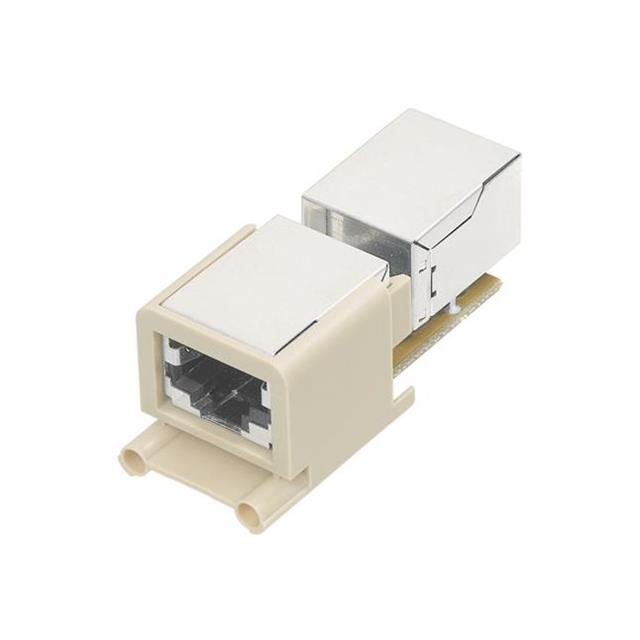

MODULAR CONNECTOR, RJ45 JACK, 1 X 1 (PORT), 8P2C, PANEL MOUNT

Search across all available documentation for this part.

Active

HARTING Technology Group

MODULAR CONNECTOR, RJ45 JACK, 1 X 1 (PORT), 8P2C, PANEL MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	09120032774

Color	Gray
Connector Type	Insert, RJ45
Current Rating (Amps)	10 A
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	8p8c
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Termination Style	IDC
Voltage Rating	250 VDC

Part	Current Rating (Amps)	Gender	Termination Style	Housing Material	Material Flammability Rating	Voltage Rating	Connector Type	Number of Positions	Color	Operating Temperature [Max]	Operating Temperature [Min]	For Use With/Related Products	Accessory Type	Specifications
HARTING Technology Group 09120032770	10 A	Female	Screw	Polycarbonate (PC)	UL94 V-0	24 VDC	Insert RJ45	8p8c	Gray	125 °C	-40 °C
HARTING Technology Group 09120032774	10 A	Female	IDC	Polycarbonate (PC)	UL94 V-0	250 VDC	Insert RJ45	8p8c	Gray	125 °C	-40 °C
HARTING Technology Group 09120032701												Han-Brid® RJ45	Insulator	Male
HARTING Technology Group 09120032711												Han-Brid® RJ45	Insulator	Female

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert, RJ45 Gray 8p8c Position IDC
