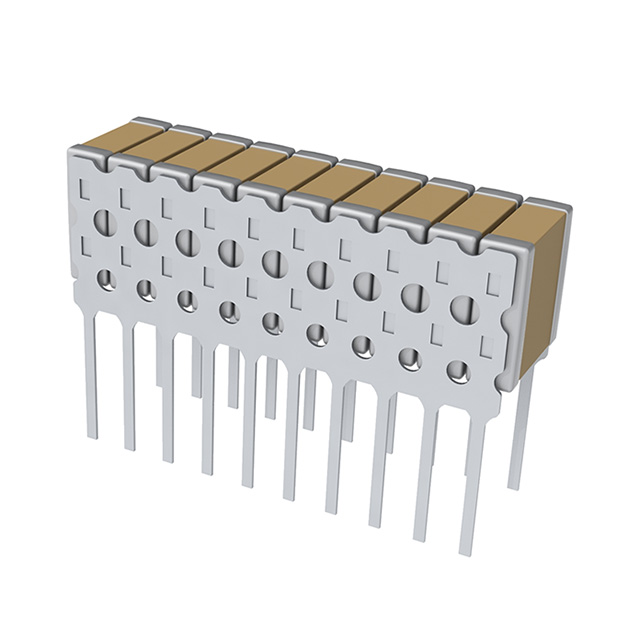

L1GN702125KA10

Active

KEMET

CAP, 1.2UF, 200V, MLCC STACKED, TH ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsKEM_C1102_KPS-MCL_200C_STACKS.pdf Datasheet +3

L1GN702125KA10

Active

KEMET

CAP, 1.2UF, 200V, MLCC STACKED, TH ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsKEM_C1102_KPS-MCL_200C_STACKS.pdf Datasheet +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L1GN702125KA10

Applications	SMPS Filtering
Capacitance	1.2 µF
Features	High Temperature, Low ESL (Stacked)
Height - Seated (Max) [Max]	8.64 mm
Height - Seated (Max) [Max]	0.34 in
Lead Spacing	0.1 in
Lead Spacing	2.54 mm
Lead Style	Straight
Mounting Type	Through Hole
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Package / Case	Stacked DIP, 20 Lead
Size / Dimension [x]	1.059 in
Size / Dimension [x]	26.9 mm
Size / Dimension [y]	0.3 "
Size / Dimension [y]	7.62 mm
Temperature Coefficient	NP0, C0G
Tolerance	10 %
Voltage - Rated	200 V

L1GN Series

Part	Tolerance	Lead Style	Features	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Temperature Coefficient	Voltage - Rated	Voltage - Rated	Lead Spacing	Lead Spacing	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET L1GN30G204KA10	10 %	Straight	High Temperature Low ESL (Stacked)	0.6 in	15.24 mm	12.7 mm	25.64 mm	1.009 in	0.5 in	Through Hole	Stacked DIP 20 Lead	-55 °C	200 °C	SMPS Filtering	C0G NP0	2 kV	2000 V
KEMET L1GN40D274KA05	10 %	Straight	High Temperature Low ESL (Stacked)	0.6 in	15.24 mm	11.18 mm	10.16 mm	0.4 in	0.44 in	Through Hole	Stacked DIP 8 Lead	-55 °C	200 °C	SMPS Filtering	C0G NP0	1 kV	1000 V	10.16 mm	0.4 in	0.27 µF
KEMET L1GN501155KA05	10 %	Straight	High Temperature Low ESL (Stacked)	0.6 in	15.24 mm	7.62 mm	6.35 mm	0.25 "	0.3 "	Through Hole	Stacked DIP 6 Lead	-55 °C	200 °C	SMPS Filtering	C0G NP0		100 V	6.35 mm	0.25 in	1.5 µF
KEMET L1GN501604KA02	10 %	Straight	High Temperature Low ESL (Stacked)	0.28 in	7.11 mm	7.62 mm	6.35 mm	0.25 "	0.3 "	Through Hole	Stacked DIP 6 Lead	-55 °C	200 °C	SMPS Filtering	C0G NP0		100 V	6.35 mm	0.25 in	0.6 µF
KEMET L1GN50G253KA05	10 %	Straight	High Temperature Low ESL (Stacked)	0.6 in	15.24 mm	7.62 mm	6.35 mm	0.25 "	0.3 "	Through Hole	Stacked DIP 6 Lead	-55 °C	200 °C	SMPS Filtering	C0G NP0	2 kV	2000 V	6.35 mm	0.25 in	0.025 µF
KEMET L1GN69G183KA05	10 %	Straight		0.29 "		7.62 mm	13.5 mm	0.531 in	0.3 "	Through Hole	Stacked DIP 10 Lead	-55 °C	200 °C	SMPS Filtering	C0G NP0	2 kV	2000 V	2.54 mm	0.1 in	0.018 µF	7.37 mm
KEMET L1GN402105KA03	10 %	Straight	High Temperature Low ESL (Stacked)			11.18 mm	10.16 mm	0.4 in	0.44 in	Through Hole	Stacked DIP 8 Lead	-55 °C	200 °C	SMPS Filtering	C0G NP0		200 V	10.16 mm	0.4 in	1 µF	9.91 mm	0.39 "
KEMET L1GN702125KA10	10 %	Straight	High Temperature Low ESL (Stacked)			7.62 mm	26.9 mm	1.059 in	0.3 "	Through Hole	Stacked DIP 20 Lead	-55 °C	200 °C	SMPS Filtering	C0G NP0		200 V	2.54 mm	0.1 in	1.2 µF	8.64 mm	0.34 in
KEMET L1GN69B224KA10	10 %	Straight	High Temperature Low ESL (Stacked)	0.29 "		7.62 mm	26.9 mm	1.059 in	0.3 "	Through Hole	Stacked DIP 20 Lead	-55 °C	200 °C	SMPS Filtering	C0G NP0		630 V	2.54 mm	0.1 in	0.22 µF	7.37 mm
KEMET L1GN40C474KA04	10 %	Straight	High Temperature Low ESL (Stacked)	0.49 "	12.45 mm	11.18 mm	10.16 mm	0.4 in	0.44 in	Through Hole	Stacked DIP 8 Lead	-55 °C	200 °C	SMPS Filtering	C0G NP0		500 V	10.16 mm	0.4 in	0.47 µF

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Newark	Each	1	$ 86.15
		5	$ 84.04
		10	$ 81.92
		25	$ 75.54
		50	$ 72.84
		100	$ 69.34

Description

General part information

L1GN Series

1.2 µF ±10% 200V Ceramic Capacitor C0G, NP0 Stacked DIP, 20 Lead
