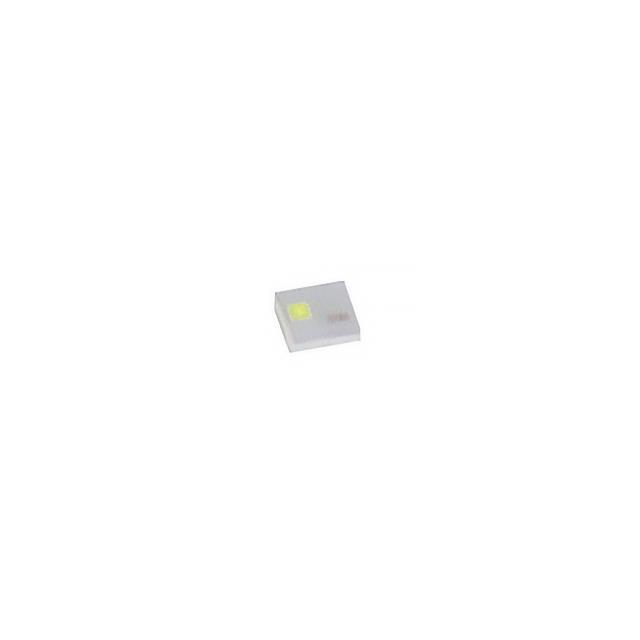

LTST-FC12WEGBD-5A

Active

Diodes Inc

LED RGBW DIFFUSED SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LTST-FC12WEGBD-5A

Active

Diodes Inc

LED RGBW DIFFUSED SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LTST-FC12WEGBD-5A

Color	Green, Blue, White, Red
Current - Test	5 mA
Height (Max) [Max] [z]	0.5 mm
Lens Color	Colorless
Lens Size [x]	1.2 mm
Lens Size [y]	1.2 mm
Lens Style	Square with Flat Top
Lens Transparency	Diffused
Millicandela Rating [custom]	532.5 mcd
Millicandela Rating [custom]	210 mcd
Millicandela Rating [custom]	135 mcd
Millicandela Rating [custom]	675 mcd
Mounting Type	Surface Mount
Package / Case	5-SMD, No Lead
Size / Dimension [x]	1.2 mm
Size / Dimension [y]	1.2 mm
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	2.85 V, 2 V, 2.85 V, 2.85 V
Wavelength - Dominant	525 nm, 468 nm, 625 nm
Wavelength - Peak [custom]	630 nm
Wavelength - Peak [custom]	464 nm
Wavelength - Peak [custom]	458 nm
Wavelength - Peak [custom]	520 nm

LTST-FC12 Series

Part	Lens Style	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Height (Max) [Max] [z]	Color	Voltage - Forward (Vf) (Typ)	Viewing Angle	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Lens Transparency	Wavelength - Dominant	Lens Size [y]	Lens Size [x]	Size / Dimension [x]	Size / Dimension [y]	Lens Color	Mounting Type	Current - Test	Package / Case
Diodes Inc LTST-FC12WEGBD-5A	Square with Flat Top	532.5 mcd	210 mcd	135 mcd	675 mcd	0.5 mm	Blue Green Red White	2 V 2.85 V 2.85 V 2.85 V	120 °	630 nm	464 nm	458 nm	520 nm	Diffused	468 nm 525 nm 625 nm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	Colorless	Surface Mount	5 mA	5-SMD No Lead

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.15
		10	$ 0.71
		100	$ 0.49
		500	$ 0.40
		1000	$ 0.37
		2000	$ 0.35
	Digi-Reel®	1	$ 1.15
		10	$ 0.71
		100	$ 0.49
		500	$ 0.40
		1000	$ 0.37
		2000	$ 0.35
	Tape & Reel (TR)	4000	$ 0.33
		8000	$ 0.31
		12000	$ 0.31
		20000	$ 0.30
		28000	$ 0.29

Description

General part information

LTST-FC12 Series

Red, Green, Blue, White (RGBW) 625nm Red, 525nm Green, 468nm Blue LED Indication - Discrete 2V Red, 2.85V Green, 2.85V Blue, 2.85V White 5-SMD, No Lead
