TC-CAPS-4003-2CS5369

Active

TE Connectivity Raychem Cable Protection

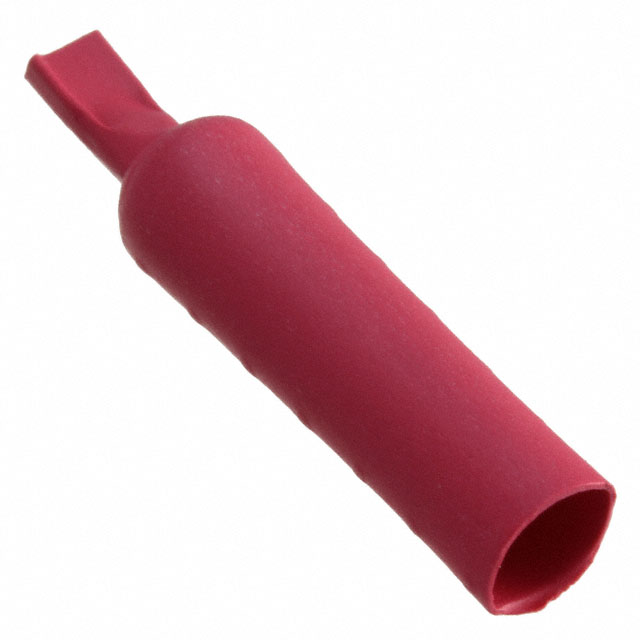

HEATSHRINK CAP RED 3.2MM

Deep-Dive with AI

Search across all available documentation for this part.

TC-CAPS-4003-2CS5369

Active

TE Connectivity Raychem Cable Protection

HEATSHRINK CAP RED 3.2MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TC-CAPS-4003-2CS5369

Color	Red
Large Diameter Recovered [diameter]	1.27 mm
Large Diameter Recovered [diameter]	0.05 in
Material	Polyolefin (PO), Semi-Rigid
Total Length Recovered	13.97 mm
Total Length Recovered	0.55 in
Total Length Supplied [x]	25.4 mm
Total Length Supplied [x]	1 in
Type	Cap

TC-CAPS Series

Part	Total Length Recovered	Total Length Recovered	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Material	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Total Length Supplied	Total Length Supplied	Type	Color	Features	Total Length Supplied [x]	Total Length Supplied [x]
TE Connectivity Raychem Cable Protection TC-CAPS-4001-9CS7380	0.4 in	10.16 mm	1.6 mm	0.063 in	Polyolefin (PO) Semi-Rigid	0.76 mm	0.03 in	0.752 in	19.1 mm	Cap	White
TE Connectivity Raychem Cable Protection TC-CAPS-4001-9	0.4 in	10.16 mm	1.6 mm	0.063 in	Polyolefin (PO) Semi-Rigid	0.76 mm	0.03 in	0.752 in	19.1 mm	Cap	White	Abrasion Resistant Flame Retardant Flex Resistant Vibration Resistant
TE Connectivity Raychem Cable Protection TC-CAPS-4003-2CS5369	0.55 in	13.97 mm			Polyolefin (PO) Semi-Rigid	1.27 mm	0.05 in			Cap	Red		25.4 mm	1 in
TE Connectivity Raychem Cable Protection TC-CAPS-4001-9-CS7475	0.4 in	10.16 mm	1.6 mm	0.063 in	Polyolefin (PO) Semi-Rigid	0.76 mm	0.03 in	0.752 in	19.1 mm	Cap	White
TE Connectivity Raychem Cable Protection TC-CAPS-4005-8-CS5504	0.55 in	13.97 mm	6.35 mm	0.25 in	Polyolefin (PO) Semi-Rigid	2.54 mm	0.1 in	1.125 in	28.58 mm	Cap	Gray
TE Connectivity Raychem Cable Protection TC-CAPS-4003-2CS5336	0.55 in	13.97 mm			Polyolefin (PO) Semi-Rigid	1.27 mm	0.05 in			Cap	Red		25.4 mm	1 in
TE Connectivity Raychem Cable Protection TC-CAPS-4001-9-CS5482	0.4 in	10.16 mm	1.6 mm	0.063 in	Polyolefin (PO) Semi-Rigid	0.76 mm	0.03 in	0.752 in	19.1 mm	Cap	White
TE Connectivity Raychem Cable Protection TC-CAPS-4003-2CS6994	0.55 in	13.97 mm			Polyolefin (PO) Semi-Rigid	1.27 mm	0.05 in			Cap	Red		25.4 mm	1 in
TE Connectivity Raychem Cable Protection TC-CAPS-4001-9CS5414	0.4 in	10.16 mm	1.6 mm	0.063 in	Polyolefin (PO) Semi-Rigid	0.76 mm	0.03 in	0.752 in	19.1 mm	Cap	White
TE Connectivity Raychem Cable Protection TC-CAPS-4005-8-CS7815	0.55 in	13.97 mm	6.35 mm	0.25 in	Polyolefin (PO) Semi-Rigid	2.54 mm	0.1 in	1.125 in	28.58 mm	Cap	Gray

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	4000	$ 0.42

Description

General part information

TC-CAPS Series

Heat Shrink Cap Red

Documents

Technical documentation and resources

No documents available
