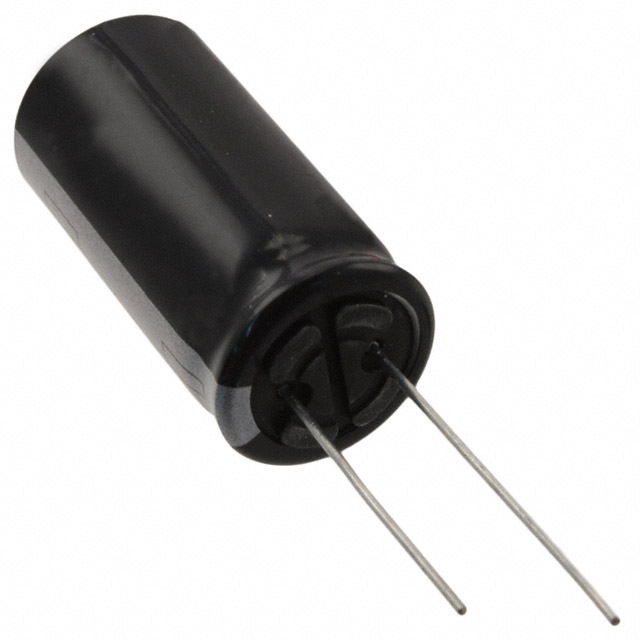

ECA-0JHG223

Active

Panasonic Industrial Automation Sales

CAP ALUM 22000UF 20% 6.3V RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ECA-0JHG223

Active

Panasonic Industrial Automation Sales

CAP ALUM 22000UF 20% 6.3V RADIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ECA-0JHG223

Applications	General Purpose
Capacitance	22000 µF
Height - Seated (Max) [Max] [z]	37.5 mm
Height - Seated (Max) [Max] [z]	1.476 in
Lead Spacing	7.5 mm
Lead Spacing	0.295 in
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	2.703 A
Ripple Current @ Low Frequency	2.35 A
Size / Dimension [diameter]	0.709 "
Size / Dimension [diameter]	18 mm
Tolerance	20 %
Voltage - Rated	6.3 V

ECA-0JH Series

Part	Lead Spacing	Lead Spacing	Tolerance	Mounting Type	Capacitance	Lifetime @ Temp.	Ripple Current @ High Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Ripple Current @ Low Frequency	Voltage - Rated	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Polarization	Size / Dimension [diameter]	Size / Dimension [diameter]	Ratings	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales ECA-0JHG101	2 mm	0.079 in	20 %	Through Hole	100 µF	1000 Hrs	136.5 mA	105 ░C	-55 °C	91 mA	6.3 V	General Purpose	12 mm	0.472 "	Radial Can	Polar	5 mm	0.197 "
Panasonic Industrial Automation Sales ECA-0JHG223	7.5 mm	0.295 in	20 %	Through Hole	22000 µF	2000 Hrs	2.703 A	105 ░C	-55 °C	2.35 A	6.3 V	General Purpose	37.5 mm	1.476 in	Radial Can	Polar	18 mm	0.709 "
Panasonic Industrial Automation Sales ECA-0JHG332B	5 mm	0.197 in	20 %	Through Hole	3.3 mF	2000 Hrs	966 mA	105 ░C	-55 °C	840 mA	6.3 V	Automotive	22 mm	0.866 in	Radial Can	Polar	10 mm	0.394 in	AEC-Q200
Panasonic Industrial Automation Sales ECA-0JHG331	2.5 mm	0.098 in	20 %	Through Hole	330 µF	1000 Hrs	285 mA	105 ░C	-55 °C	190 mA	6.3 V	General Purpose	12.2 mm	0.48 "	Radial Can	Polar	6.3 mm	0.248 in
Panasonic Industrial Automation Sales ECA-0JHG102B	5 mm	0.197 in	20 %	Through Hole	1000 µF	1000 Hrs	437 mA	105 ░C	-55 °C	380 mA	6.3 V	Automotive			Radial Can	Polar	8 mm	0.315 "	AEC-Q200	0.492 in	12.5 mm
Panasonic Industrial Automation Sales ECA-0JHG682	5 mm	0.197 in	20 %	Through Hole	6800 µF	2000 Hrs	1.553 A	105 ░C	-55 °C	1.35 A	6.3 V	General Purpose	27 mm	1.063 in	Radial Can	Polar	12.5 mm	0.492 in
Panasonic Industrial Automation Sales ECA-0JHG682B	5 mm	0.197 in	20 %	Through Hole	6800 µF	2000 Hrs	1.553 A	105 ░C	-55 °C	1.35 A	6.3 V	General Purpose	27 mm	1.063 in	Radial Can	Polar	12.5 mm	0.492 in
Panasonic Industrial Automation Sales ECA-0JHG153	7.5 mm	0.295 in	20 %	Through Hole		2000 Hrs	2.312 A	105 ░C	-55 °C	2.01 A	6.3 V	General Purpose			Radial Can	Polar	16 mm	0.63 in
Panasonic Industrial Automation Sales ECA-0JHG471I	2.5 mm	0.098 in	20 %	Through Hole	470 µF	1000 Hrs	345 mA	105 ░C	-55 °C	230 mA	6.3 V	General Purpose	12.2 mm	0.48 "	Radial Can	Polar	6.3 mm	0.248 in
Panasonic Industrial Automation Sales ECA-0JHG101I	2.5 mm	0.098 in	20 %	Through Hole	100 µF	1000 Hrs	136.5 mA	105 ░C	-55 °C	91 mA	6.3 V	General Purpose	12 mm	0.472 "	Radial Can	Polar	5 mm	0.197 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.54
		10	$ 1.95
		50	$ 1.79
		100	$ 1.49
		500	$ 1.20
		1000	$ 1.05
		2500	$ 1.01
		5000	$ 0.97

Description

General part information

ECA-0JH Series

22000 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
