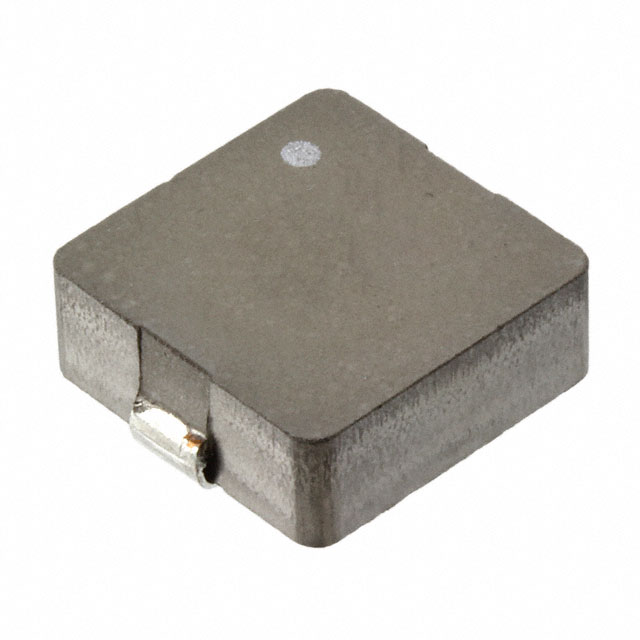

MPC1250LR36C - MPC1250LRxxC

MPC1250LR36C

Active
KEMET

FIXED IND 360NH 38A 0.65MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMPC1250LR36C SpecDatasheet+2
MPC1250LR36C - MPC1250LRxxC

MPC1250LR36C

Active
KEMET

FIXED IND 360NH 38A 0.65MOHM SMD

Deep-Dive with AI

DocumentsMPC1250LR36C SpecDatasheet+2

Technical Specifications

Parameters and characteristics for this part

SpecificationMPC1250LR36C
Current - Saturation (Isat)40 A
Current Rating (Amps)38 A
DC Resistance (DCR)0.65 mOhm
Height - Seated (Max) [Max] [z]0.197 in
Height - Seated (Max) [Max] [z]5 mm
Inductance360 nH
Inductance Frequency - Test100 kHz
Material - CoreFerrite
Mounting TypeSurface Mount
Operating Temperature [Max]120 °C
Operating Temperature [Min]-20 C
Package / Case2-SMD, J-Lead
ShieldingShielded
Size / Dimension [x]14.5 mm
Size / Dimension [x]0.571 in
Size / Dimension [y]0.492 "
Size / Dimension [y]12.5 mm
Tolerance20 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 2.14
10$ 1.82
25$ 1.68
50$ 1.50
100$ 1.25
250$ 1.21
Digi-Reel® 1$ 2.14
10$ 1.82
25$ 1.68
50$ 1.50
100$ 1.25
250$ 1.21
Tape & Reel (TR) 500$ 0.88
NewarkEach (Supplied on Full Reel) 1000$ 1.15
2000$ 1.08
4000$ 0.97
6000$ 0.94
10000$ 0.90

Description

General part information

MPC1250 Series

360 nH Shielded Inductor 38 A 0.65mOhm 2-SMD, J-Lead
