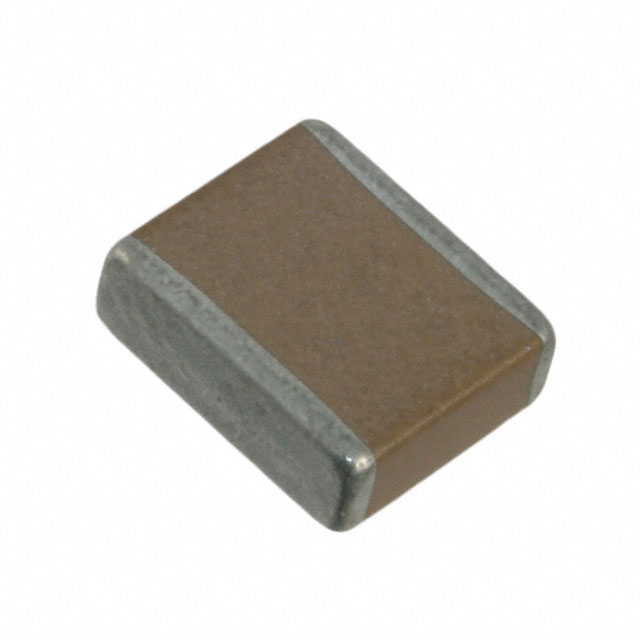

VPEH202W103K1GF001E

Active

JOHANSON DIELECTRICS

CAP CER 10000PF 2KV X7R 2225

Search across all available documentation for this part.

Active

JOHANSON DIELECTRICS

CAP CER 10000PF 2KV X7R 2225

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VPEH202W103K1GF001E	VPEH202 Series

Applications	SMPS Filtering, Boardflex Sensitive	SMPS Filtering, Boardflex Sensitive
Capacitance	10000 pF	10000 pF
Features	High Voltage, Soft Termination	High Voltage, Soft Termination
Mounting Type	Surface Mount, MLCC	Surface Mount, MLCC
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	2225	2225
Package / Case	5763 Metric	5763 Metric
Size / Dimension [x]	0.225 "	0.225 "
Size / Dimension [x]	5.72 mm	5.72 mm
Size / Dimension [y]	6.48 mm	6.48 mm
Size / Dimension [y]	0.255 "	0.255 "
Temperature Coefficient	X7R	X7R
Thickness (Max) [Max]	0.16 in	0.16 in
Thickness (Max) [Max]	4.06 mm	4.06 mm
Tolerance	10 %	10 %
Voltage - Rated	2 kV	2 kV
Voltage - Rated	2000 V	2000 V

CAP CER 10000PF 2KV X7R 2225

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Package / Case	Voltage - Rated	Voltage - Rated	Temperature Coefficient	Features	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Mounting Type	Applications	Thickness (Max) [Max]	Thickness (Max) [Max]	Tolerance
JOHANSON DIELECTRICS VPEH202W103K1GV001E	0.225 "	6.48 mm	0.255 "	5.72 mm	2225	5763 Metric	2 kV	2000 V	X7R	High Voltage	-55 °C	125 °C	10000 pF	MLCC, Surface Mount	SMPS Filtering	0.16 in	4.06 mm	10 %
JOHANSON DIELECTRICS VPEH202W103K1GF001E	0.225 "	6.48 mm	0.255 "	5.72 mm	2225	5763 Metric	2 kV	2000 V	X7R	High Voltage, Soft Termination	-55 °C	125 °C	10000 pF	MLCC, Surface Mount	Boardflex Sensitive, SMPS Filtering	0.16 in	4.06 mm	10 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 1.11

General part information

10000 pF ±10% 2000V (2kV) Ceramic Capacitor X7R 2225 (5763 Metric)
