LM2594M-12
ActiveUMW

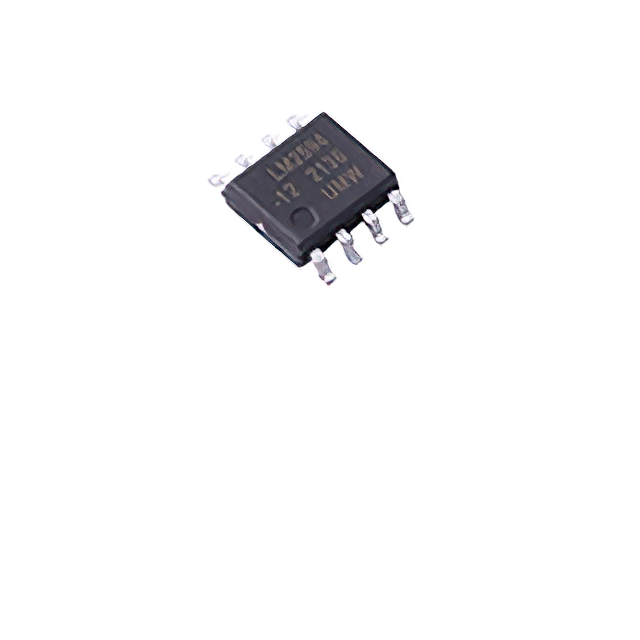

IC REG BUCK 12V 1.5A 8SOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LM2594M-12
ActiveUMW
IC REG BUCK 12V 1.5A 8SOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LM2594M-12 |
|---|---|
| Current - Output | 1.5 A |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | 8-SOIC |
| Package / Case [x] | 0.154 in |
| Package / Case [y] | 3.9 mm |
| Supplier Device Package | 8-SOP |
| Synchronous Rectifier | False |
| Topology | Buck |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Output (Min/Fixed) | 12 V |
