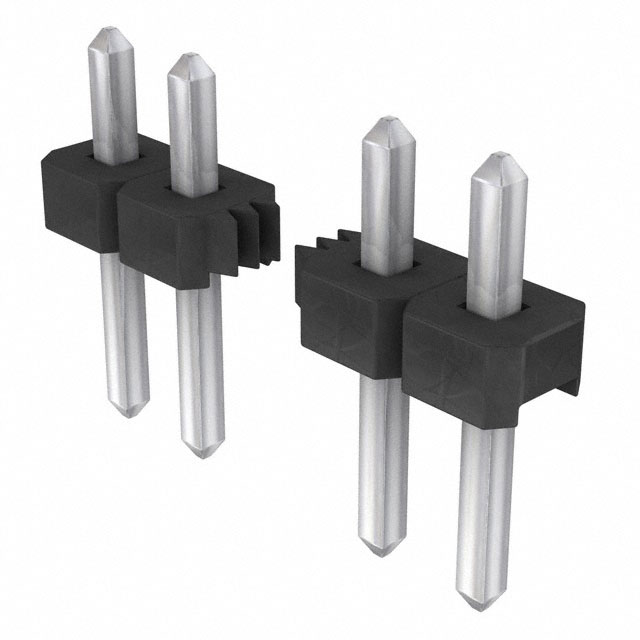

TLW-107-05-T-S

Active

Samtec Inc.

5.2A STRAIGHT TIN 7P -55℃~+105℃ 2.54MM BLACK SINGLE ROW PHOSPHOR BRONZE PLUGIN,P=2.54MM PIN HEADERS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet TLW Thru Hole Footprint

TLW-107-05-T-S

Active

Samtec Inc.

5.2A STRAIGHT TIN 7P -55℃~+105℃ 2.54MM BLACK SINGLE ROW PHOSPHOR BRONZE PLUGIN,P=2.54MM PIN HEADERS ROHS

Deep-Dive with AI

DocumentsDatasheet TLW Thru Hole Footprint

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TLW-107-05-T-S

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	4.32 mm
Contact Length - Post	0.17 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	5.2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.06 in
Insulation Height [z]	1.52 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	7
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	8.51 mm
Overall Contact Length	0.335 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

TLW-107 Series

Part	Insulation Color	Current Rating (Amps)	Contact Type	Contact Length - Post [x]	Contact Length - Post [x]	Overall Contact Length	Overall Contact Length	Style	Contact Shape	Connector Type	Insulation Material	Contact Material	Number of Positions	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Number of Rows	Termination	Shrouding	Number of Positions Loaded	Fastening Type	Insulation Height [z]	Insulation Height [z]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Length - Mating [x]	Contact Length - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height
Samtec Inc. TLW-107-06-TM-S	Black	5.2 A	Male Pin	0.135 in	3.43 mm	7.62 mm	0.3 in	Board to Board Cable	Square	Header	Liquid Crystal Polymer (LCP)	Phosphor Bronze	7	Through Hole	0.1 in	2.54 mm	Tin	1	Solder	Unshrouded	All	Push-Pull	0.06 in	1.52 mm	105 ░C	-55 °C
Samtec Inc. TLW-107-05-T-S	Black	5.2 A	Male Pin			8.51 mm	0.335 in	Board to Board Cable	Square	Header	Liquid Crystal Polymer (LCP)	Phosphor Bronze	7	Through Hole	0.1 in	2.54 mm	Tin	1	Solder	Unshrouded	All	Push-Pull	0.06 in	1.52 mm	105 ░C	-55 °C	4.32 mm	0.17 in
Samtec Inc. TLW-107-05-G-S	Black	5.2 A	Male Pin			8.51 mm	0.335 in	Board to Board Cable	Square	Header	Liquid Crystal Polymer (LCP)	Phosphor Bronze	7	Through Hole	0.1 in	2.54 mm	Gold	1	Solder	Unshrouded	All	Push-Pull	0.06 in	1.52 mm	125 °C	-55 °C	4.32 mm	0.17 in	Gold	10 çin	0.25 çm	Flash
Samtec Inc. TLW-107-01-G-S-RA	Black	5.2 A	Male Pin	0.12 in	3.05 mm			Board to Board Cable	Square	Header	Liquid Crystal Polymer (LCP)	Phosphor Bronze	7	Through Hole Right Angle	0.1 in	2.54 mm	Gold	1	Solder	Unshrouded	All	Push-Pull	0.098 in	2.5 mm	125 °C	-55 °C			Gold	10 çin	0.25 çm	Flash	0.23 in	5.84 mm
Samtec Inc. TLW-107-06-TM-D	Black	5.2 A	Male Pin	0.135 in	3.43 mm	7.62 mm	0.3 in	Board to Board Cable	Square	Header	Liquid Crystal Polymer (LCP)	Phosphor Bronze	14	Through Hole	0.1 in	2.54 mm	Tin	2	Solder	Unshrouded	All	Push-Pull	0.06 in	1.52 mm	105 ░C	-55 °C									2.54 mm	0.1 in
Samtec Inc. TLW-107-06-L-D	Black	5.2 A	Male Pin	0.135 in	3.43 mm	7.62 mm	0.3 in	Board to Board Cable	Square	Header	Liquid Crystal Polymer (LCP)	Phosphor Bronze	14	Through Hole	0.1 in	2.54 mm		2	Solder	Unshrouded	All	Push-Pull	0.06 in	1.52 mm	125 °C	-55 °C			Gold						2.54 mm	0.1 in
Samtec Inc. TLW-107-01-G-D-RA	Black	5.2 A	Male Pin	0.12 in	3.05 mm			Board to Board Cable	Square	Header	Liquid Crystal Polymer (LCP)	Phosphor Bronze	14	Through Hole Right Angle	0.1 in	2.54 mm	Gold	2	Solder	Unshrouded	All	Push-Pull			125 °C	-55 °C			Gold	10 çin	0.25 çm	Flash	0.23 in	5.84 mm	2.54 mm	0.1 in	0.197 in	5 mm
Samtec Inc. TLW-107-05-T-D-05
Samtec Inc. TLW-107-01-F-S-RA	Black	5.2 A	Male Pin	0.12 in	3.05 mm			Board to Board Cable	Square	Header	Liquid Crystal Polymer (LCP)	Phosphor Bronze	7	Through Hole Right Angle	0.1 in	2.54 mm	Tin	1	Solder	Unshrouded	All	Push-Pull	0.098 in	2.5 mm	125 °C	-55 °C			Gold	3 µin	0.076 µm		0.23 in	5.84 mm
Samtec Inc. TLW-107-06-T-S	Black	5.2 A	Male Pin	0.135 in	3.43 mm	7.62 mm	0.3 in	Board to Board Cable	Square	Header	Liquid Crystal Polymer (LCP)	Phosphor Bronze	7	Through Hole	0.1 in	2.54 mm	Tin	1	Solder	Unshrouded	All	Push-Pull	0.06 in	1.52 mm	105 ░C	-55 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 1.19
		50	$ 0.93
		100	$ 0.75
		500	$ 0.64
		1000	$ 0.47
Digikey	Bulk	1	$ 1.24
		10	$ 1.05
		100	$ 0.94
		500	$ 0.77
		1000	$ 0.69
		5000	$ 0.60
		10000	$ 0.57
LCSC	Piece	1	$ 1.90
		200	$ 0.76
		500	$ 0.73
		1000	$ 0.72

Description

General part information

TLW-107 Series

Connector Header Through Hole 7 position 0.100" (2.54mm)
