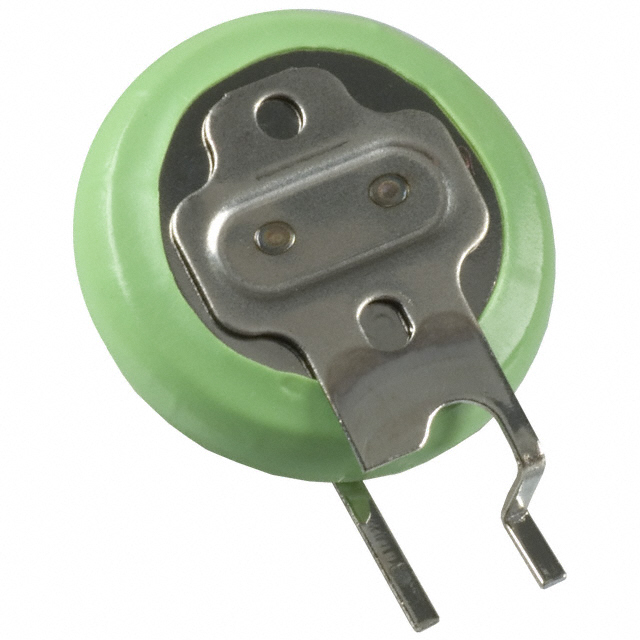

BR-1225A/FAN

Active

Panasonic - BSG

BATTERY LITHIUM 3V COIN 12.5MM

Deep-Dive with AI

DocumentsDatasheet BR-1225A/FAN Tab Configuration

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.19
		20	$ 1.72
		40	$ 1.63
		100	$ 1.51
		300	$ 1.38
		500	$ 1.33
		1000	$ 1.25
		2500	$ 1.16

Description

General part information

BR-1225 Series

Coin, 12.5mm Lithium Poly-Carbon Monofluoride 3 V Battery Non-Rechargeable (Primary)

Documents

Technical documentation and resources

Datasheet

BR-1225A/FAN Tab Configuration

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BR-1225A/FAN	BR-1225 Series

Battery Cell Size	12.5 mm	12.5 mm
Battery Cell Size	Coin	Coin
Battery Chemistry	Lithium Poly-Carbon Monofluoride	Lithium Poly-Carbon Monofluoride
Capacity	48 mAh	48 mAh
Discharge Rate	30 µA	30 µA
Shipping Info	Due to restrictions, only ground shipment is allowed.	Due to restrictions, only ground shipment is allowed.
Size / Dimension	-	0.49 in
Size / Dimension	-	0.09 "
Size / Dimension [diameter]	0.49 "	0.49 - 12.5 "
Size / Dimension [diameter]	12.5 mm	12.5 mm
Size / Dimension [z]	2.5 mm	2.5 mm
Size / Dimension [z]	2.54 mm	2.3 - 2.54 mm
Termination Style	SMD (SMT) Tab	SMD (SMT) Tab, PC Pin (Horizontal Mount), PC Pin (Vertical Mount), Requires Holder
Voltage - Rated	3 VDC	3 VDC
Weight	0.8 g	0.8 g

BR-1225 Series

BATTERY LITHIUM 3V COIN 12.5MM

Part	Battery Cell Size	Battery Cell Size	Battery Chemistry	Weight	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [diameter]	Capacity	Termination Style	Discharge Rate	Shipping Info	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [z]
Panasonic - BSG BR-1225A/FAN	12.5 mm	Coin	Lithium Poly-Carbon Monofluoride	0.8 g	0.49 "	2.5 mm	2.54 mm	12.5 mm	48 mAh	SMD (SMT) Tab	30 µA	Due to restrictions, only ground shipment is allowed.	3 VDC
Panasonic - BSG BR-1225/HCN	12.5 mm	Coin	Lithium Poly-Carbon Monofluoride	0.8 g	0.49 "	2.5 mm	2.54 mm	12.5 mm	48 mAh	PC Pin (Horizontal Mount)	30 µA	Due to restrictions, only ground shipment is allowed.	3 VDC
Panasonic - BSG BR-1225/VCN	12.5 mm	Coin	Lithium Poly-Carbon Monofluoride	0.8 g	0.49 "	2.5 mm	2.54 mm	12.5 mm	48 mAh	PC Pin (Vertical Mount)	30 µA	Due to restrictions, only ground shipment is allowed.	3 VDC
Panasonic - BSG BR-1225/HBN	12.5 mm	Coin	Lithium Poly-Carbon Monofluoride	0.8 g	12.5 mm		2.3 mm		48 mAh			Due to restrictions, only ground shipment is allowed.	3 VDC	0.49 in	0.09 "
Panasonic - BSG BR-1225/H1AN	12.5 mm	Coin	Lithium Poly-Carbon Monofluoride	0.8 g	12.5 mm		2.3 mm		48 mAh			Due to restrictions, only ground shipment is allowed.	3 VDC	0.49 in	0.09 "
Panasonic - BSG BR-1225A/HAN	12.5 mm	Coin	Lithium Poly-Carbon Monofluoride	0.8 g	12.5 mm		2.3 mm		48 mAh			Due to restrictions, only ground shipment is allowed.	3 VDC	0.49 in	0.09 "
Panasonic - BSG BR-1225A/BN	12.5 mm	Coin	Lithium Poly-Carbon Monofluoride	0.8 g	0.49 "	2.5 mm	2.54 mm	12.5 mm	48 mAh	Requires Holder	30 µA	Due to restrictions, only ground shipment is allowed.	3 VDC
