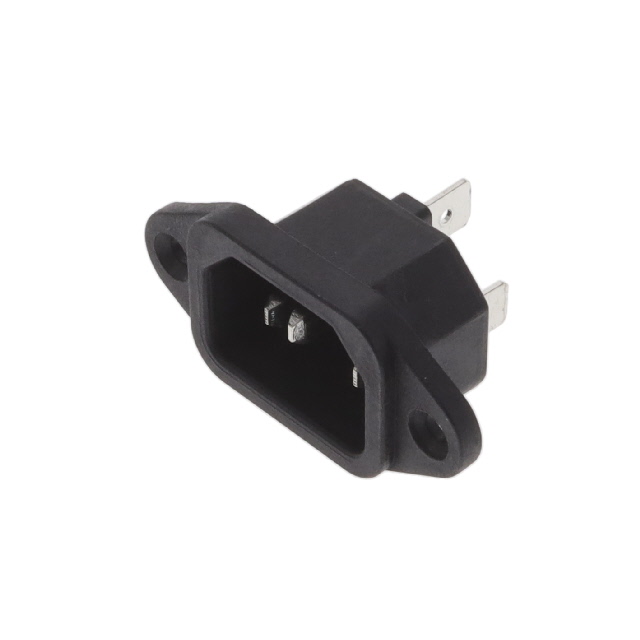

Specification	IEC-A-2

Accomodates a Fuse	No
Approval Agency	cURus, CCC, ENEC
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	15 A
Features	Front or Rear Side Mount
Filter Type	Unfiltered, Commercial
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Number of Positions	3
Panel Cutout Description	Variable Size
Termination	Quick Connect
Termination Probe Tip OD	0.25 in
Voltage Rating - Appliance Inlet	250 VAC

IEC-A Series

Part	Current Rating - Appliance Inlet	Material Flammability Rating	Connector Type	Voltage Rating - Appliance Inlet	Connector Style	Mounting Type	Filter Type	Panel Cutout Description	Approval Agency	Number of Positions	Accomodates a Fuse	Termination Probe Tip OD	Termination	Features
Adam Tech IEC-A-2	15 A	UL94 V-0	Male Blades Receptacle	250 VAC	IEC 320-C14	Flange Panel Mount	Commercial Unfiltered	Variable Size	CCC cURus ENEC	3	No	0.25 in	Quick Connect	Front or Rear Side Mount
Adam Tech IEC-A-1	15 A	UL94 V-0	Male Blades Receptacle	250 VAC	IEC 320-C14	Flange Panel Mount	Commercial Unfiltered	Variable Size	CCC cURus ENEC	3	No	0.187 in	Quick Connect	Front or Rear Side Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
