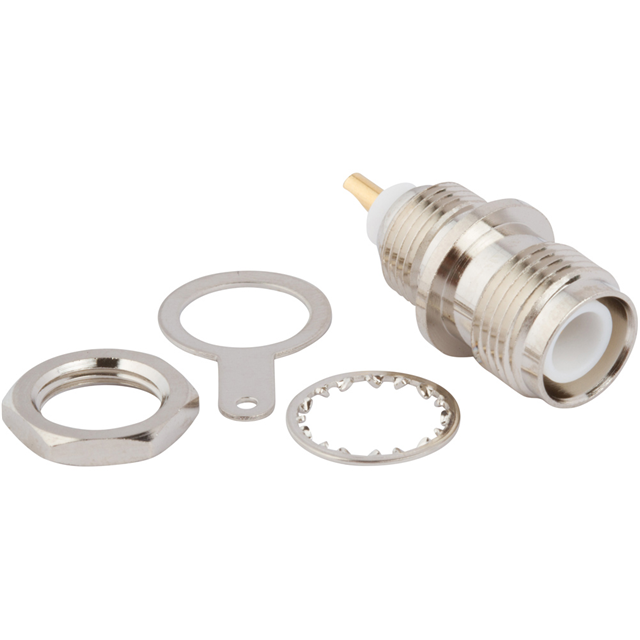

122332RP

Active

Amphenol RF

TNC STRAIGHT JACK, SOLDER CUP, 5

Search across all available documentation for this part.

Active

Amphenol RF

TNC STRAIGHT JACK, SOLDER CUP, 5

Technical Specifications

Parameters and characteristics for this part

Specification	122332RP

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	RP-TNC
Connector Type	Male Pin, Jack
Contact Termination	Solder Cup
Dielectric Material	Polyoxymethylene (POM) Acetal
Features	Extended Insulation
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	500 V

Part	Frequency - Max [Max]	Connector Type	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Connector Style	Housing Color	Center Contact Material	Contact Termination	Body Material	Voltage Rating	Mounting Feature	Features	Shield Termination	Impedance	Body Finish	Dielectric Material	Center Contact Plating	Mating Cycles
Amphenol RF 122332RP	11 GHz	Jack Male Pin	1	85 °C	-40 °C	RP-TNC	Silver	Phosphor Bronze	Solder Cup	Brass	500 V	Bulkhead - Rear Side Nut	Extended Insulation	Solder	50 Ohms	Nickel	Polyoxymethylene (POM) Acetal	Gold	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RP-TNC Connector Jack, Male Pin 50 Ohms Panel Mount Solder Cup
