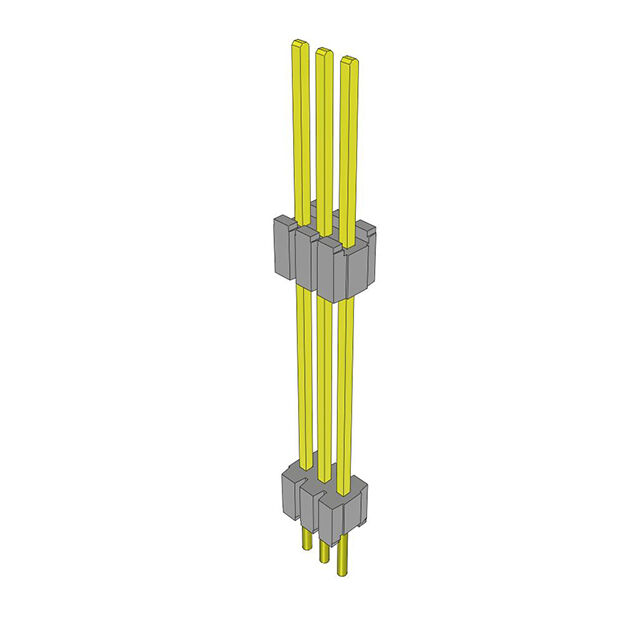

DWM-03-61-G-S-650

Active

Samtec Inc.

CONN HDR 3POS 0.05 STACK T/H

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DWM-03-61-G-S-650

Active

Samtec Inc.

CONN HDR 3POS 0.05 STACK T/H

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DWM-03-61-G-S-650

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin [x]	1.05 in
Length - Overall Pin [x]	26.67 mm
Length - Post (Mating) [x]	0.28 in
Length - Post (Mating) [x]	7.112 mm
Length - Stack Height [x]	16.51 mm
Length - Stack Height [x]	0.65 in
Length - Tail [x]	0.12 in
Length - Tail [x]	3.048 mm
Mounting Type	Through Hole
Number of Rows	1
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Termination	Solder

DWM-03 Series

Part	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Mounting Type	Color	Length - Overall Pin	Length - Overall Pin	Number of Rows	Length - Stack Height [x]	Length - Stack Height [x]	Pitch [x]	Pitch [x]	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Tail [x]	Length - Tail [x]	Contact Finish - Post (Mating)	Termination	Length - Stack Height [z]	Length - Stack Height [z]	Length - Overall Pin [x]	Length - Overall Pin [x]	Length - Stack Height [custom]	Length - Stack Height [custom]
Samtec Inc. DWM-03-01-G-S-240	0.25 Ám	10 Áin	Through Hole	Black	0.45 in	11.43 mm	1	6.096 mm	0.24 in	0.05 in	1.27 mm	0.09 in	2.286 mm	0.12 in	3.048 mm	Gold	Solder
Samtec Inc. DWM-03-58-S-S-450-002	0.76 µm	30 µin	Through Hole	Black	0.705 in	17.907 mm	1			0.05 in	1.27 mm	0.135 in	3.429 mm	0.12 in	3.048 mm	Gold	Solder	0.45 in	11.43 mm
Samtec Inc. DWM-03-54-G-S-255	0.25 Ám	10 Áin	Through Hole	Black			1	6.477 mm	0.255 in	0.05 in	1.27 mm	0.18 in	4.572 mm	0.12 in	3.048 mm	Gold	Solder			0.555 in	14.097 mm
Samtec Inc. DWM-03-54-G-S-350	0.25 Ám	10 Áin	Through Hole	Black			1	8.89 mm	0.35 in	0.05 in	1.27 mm	0.085 in	2.159 mm	0.12 in	3.048 mm	Gold	Solder			0.555 in	14.097 mm
Samtec Inc. DWM-03-01-G-S-200	0.25 Ám	10 Áin	Through Hole	Black	0.45 in	11.43 mm	1			0.05 in	1.27 mm	0.13 in	3.302 mm	0.12 in	3.048 mm	Gold	Solder
Samtec Inc. DWM-03-60-G-S-450	0.25 Ám	10 Áin	Through Hole	Black			1			0.05 in	1.27 mm	0.255 in	6.477 mm	0.12 in	3.048 mm	Gold	Solder	0.45 in	11.43 mm	0.825 in	20.955 mm
Samtec Inc. DWM-03-59-G-S-473	0.25 Ám	10 Áin	Through Hole	Black			1			0.05 in	1.27 mm	0.162 in	4.115 mm	0.12 in	3.048 mm	Gold	Solder			0.755 in	19.177 mm	0.473 in	12.014 mm
Samtec Inc. DWM-03-59-G-S-500	0.25 Ám	10 Áin	Through Hole	Black			1	12.7 mm	0.5 in	0.05 in	1.27 mm	0.135 in	3.429 mm	0.12 in	3.048 mm	Gold	Solder			0.755 in	19.177 mm
Samtec Inc. DWM-03-61-G-S-650	0.25 Ám	10 Áin	Through Hole	Black			1	16.51 mm	0.65 in	0.05 in	1.27 mm	0.28 in	7.112 mm	0.12 in	3.048 mm	Gold	Solder			1.05 in	26.67 mm
Samtec Inc. DWM-03-55-L-S-295	0.25 Ám	10 Áin	Through Hole	Black			1	7.493 mm	0.295 in	0.05 in	1.27 mm	0.195 in	4.953 mm	0.12 in	3.048 mm	Gold	Solder			0.61 in	15.494 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.32

Description

General part information

DWM-03 Series

3 Position Header Spacer Connector 0.050" (1.27mm) Gold Through Hole

Documents

Technical documentation and resources
