150-90-964-00-001000

Active

Mill-Max Manufacturing Corp.

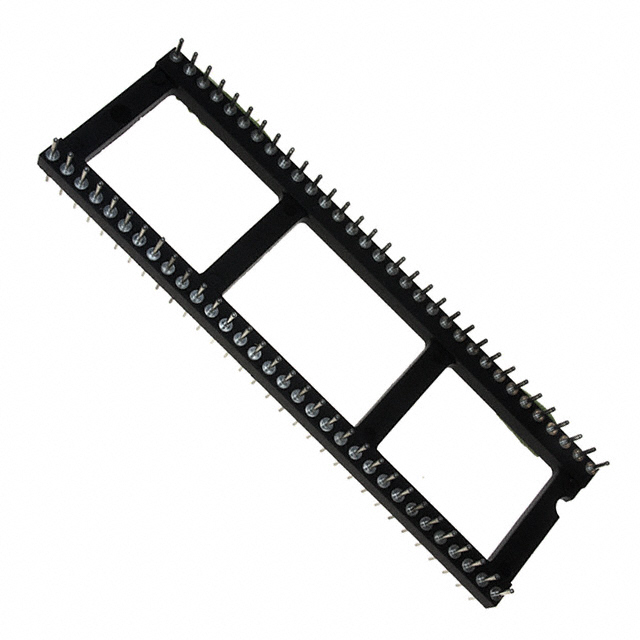

CONN HDR DIP POST 64POS TIN-LEAD

Deep-Dive with AI

Search across all available documentation for this part.

150-90-964-00-001000

Active

Mill-Max Manufacturing Corp.

CONN HDR DIP POST 64POS TIN-LEAD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	150-90-964-00-001000

Color	Black
Connector Type	DIP, DIL - Header
Contact Finish	Tin-Lead
Contact Finish Thickness	200 Áin
Contact Finish Thickness	5.08 Ám
Mounting Type	Through Hole
Number of Positions	64
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	22.86 mm
Row Spacing	0.9 in
Termination	Solder

150-90 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Row Spacing	Row Spacing	Contact Finish	Color	Mounting Type	Termination	Pitch [x]	Pitch [x]	Number of Rows	Connector Type	Number of Positions
Mill-Max Manufacturing Corp. 150-90-420-00-001000	200 Áin	5.08 Ám	0.4 in	10.16 mm	Tin-Lead	Black	Through Hole	Solder	2.54 mm	0.1 in	2	DIL - Header DIP	20
Mill-Max Manufacturing Corp. 150-90-632-00-001000	200 Áin	5.08 Ám	0.6 in	15.24 mm	Tin-Lead	Black	Through Hole	Solder	2.54 mm	0.1 in	2	DIL - Header DIP
Mill-Max Manufacturing Corp. 150-90-964-00-001000	200 Áin	5.08 Ám	0.9 in	22.86 mm	Tin-Lead	Black	Through Hole	Solder	2.54 mm	0.1 in	2	DIL - Header DIP	64
Mill-Max Manufacturing Corp. 150-90-432-00-001000	200 Áin	5.08 Ám	0.4 in	10.16 mm	Tin-Lead	Black	Through Hole	Solder	2.54 mm	0.1 in	2	DIL - Header DIP
Mill-Max Manufacturing Corp. 150-90-950-00-001000	200 Áin	5.08 Ám	0.9 in	22.86 mm	Tin-Lead	Black	Through Hole	Solder	2.54 mm	0.1 in	2	DIL - Header DIP	50
Mill-Max Manufacturing Corp. 150-90-422-00-001000	200 Áin	5.08 Ám	0.4 in	10.16 mm	Tin-Lead	Black	Through Hole	Solder	2.54 mm	0.1 in	2	DIL - Header DIP	22 positions
Mill-Max Manufacturing Corp. 150-90-328-00-001000	200 Áin	5.08 Ám	0.3 in	7.62 mm	Tin-Lead	Black	Through Hole	Solder	2.54 mm	0.1 in	2	DIL - Header DIP	28
Mill-Max Manufacturing Corp. 150-90-210-00-001000	200 Áin	5.08 Ám	0.2 in	5.08 mm	Tin-Lead	Black	Through Hole	Solder	2.54 mm	0.1 in	2	DIL - Header DIP	10
Mill-Max Manufacturing Corp. 150-90-304-00-001000	200 Áin	5.08 Ám	0.3 in	7.62 mm	Tin-Lead	Black	Through Hole	Solder	2.54 mm	0.1 in	2	DIL - Header DIP	4
Mill-Max Manufacturing Corp. 150-90-642-00-001000	200 Áin	5.08 Ám	0.6 in	15.24 mm	Tin-Lead	Black	Through Hole	Solder	2.54 mm	0.1 in	2	DIL - Header DIP	42

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 28.61
		12	$ 22.95

Description

General part information

150-90 Series

64 Position DIP, DIL - Header Connector Post Tin-Lead

Documents

Technical documentation and resources

No documents available
