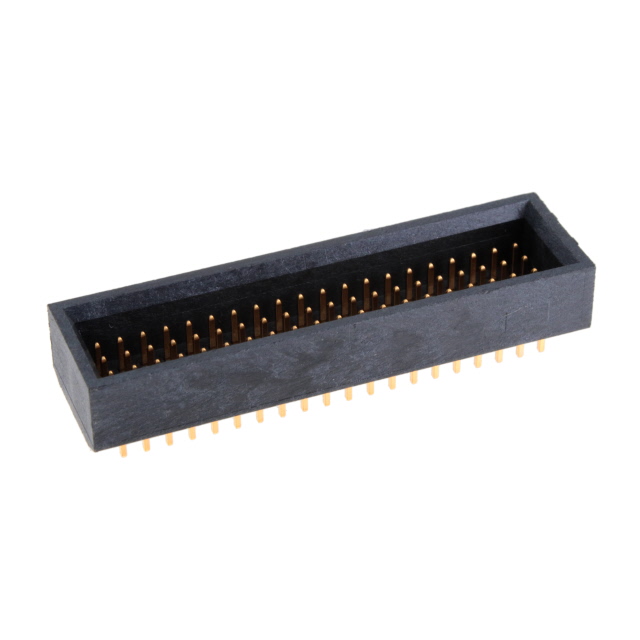

TMMS-120-01-G-Q-FS

Active

Samtec Inc.

2.00 MM FULLY SHROUDED QUAD ROW

Deep-Dive with AI

Search across all available documentation for this part.

Documents2.00 mm Fully Shrouded Quad Row Terminal Strip TMMS Datasheet +2

TMMS-120-01-G-Q-FS

Active

Samtec Inc.

2.00 MM FULLY SHROUDED QUAD ROW

Deep-Dive with AI

Documents2.00 mm Fully Shrouded Quad Row Terminal Strip TMMS Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TMMS-120-01-G-Q-FS

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Mating	0.13 in
Contact Length - Mating	3.3 mm
Contact Length - Post	0.113 in
Contact Length - Post	2.87 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.299 in
Insulation Height	7.6 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	80
Number of Positions Loaded	All
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.302 in
Overall Contact Length	7.67 mm
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Termination	Solder

TMMS-120 Series

Part	Material Flammability Rating	Connector Type	Fastening Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Insulation Height	Insulation Height	Insulation Color	Contact Finish - Post	Contact Material	Contact Shape	Contact Length - Mating	Contact Length - Mating	Mounting Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Post	Contact Length - Post	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Overall Contact Length	Overall Contact Length	Shrouding	Number of Positions Loaded	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height [z]
Samtec Inc. TMMS-120-01-F-Q	UL94 V-0	Header	Push-Pull	Solder	-55 °C	125 °C	Gold	0.299 in	7.6 mm	Black	Tin	Phosphor Bronze	Square	0.13 in	3.3 mm	Through Hole	0.079 in	2 mm	0.113 in	2.87 mm	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	80	0.302 in	7.67 mm	Shrouded - 4 Wall	All	Male Pin	3 µin	0.076 µm
Samtec Inc. TMMS-120-01-F-Q-FS	UL94 V-0	Header	Push-Pull	Solder	-55 °C	125 °C	Gold	0.299 in	7.6 mm	Black	Tin	Phosphor Bronze	Square	0.13 in	3.3 mm	Through Hole	0.079 in	2 mm	0.113 in	2.87 mm	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	80	0.302 in	7.67 mm	Shrouded - 4 Wall	All	Male Pin	3 µin	0.076 µm
Samtec Inc. TMMS-120-01-G-Q-FS	UL94 V-0	Header	Push-Pull	Solder	-55 °C	125 °C	Gold	0.299 in	7.6 mm	Black	Gold	Phosphor Bronze	Square	0.13 in	3.3 mm	Through Hole	0.079 in	2 mm	0.113 in	2.87 mm	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	80	0.302 in	7.67 mm	Shrouded - 4 Wall	All	Male Pin	10 çin	0.25 çm	10 çin	0.25 çm
Samtec Inc. TMMS-120-01-F-Q-RA	UL94 V-0	Header	Push-Pull	Solder	-55 °C	125 °C	Gold		12.07 mm	Black	Tin	Phosphor Bronze	Square	0.13 in	3.3 mm	Through Hole Right Angle	0.079 in	2 mm	0.09 "	2.29 mm	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	80			Shrouded - 4 Wall	All	Male Pin	3 µin	0.076 µm			0.475 in
Samtec Inc. TMMS-120-01-F-Q-RA-FS	UL94 V-0	Header	Push-Pull	Solder	-55 °C	125 °C	Gold		12.07 mm	Black	Tin	Phosphor Bronze	Square	0.13 in	3.3 mm	Through Hole Right Angle	0.079 in	2 mm	0.09 "	2.29 mm	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	80			Shrouded - 4 Wall	All	Male Pin	3 µin	0.076 µm			0.475 in
Samtec Inc. TMMS-120-01-L-Q-RA-FS	UL94 V-0	Header	Push-Pull	Solder	-55 °C	125 °C	Gold		12.07 mm	Black	Tin	Phosphor Bronze	Square	0.13 in	3.3 mm	Through Hole Right Angle	0.079 in	2 mm	0.09 "	2.29 mm	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	80			Shrouded - 4 Wall	All	Male Pin	10 çin	0.25 çm			0.475 in
