Q-2I01A0003072i

Active

Amphenol Custom Cable

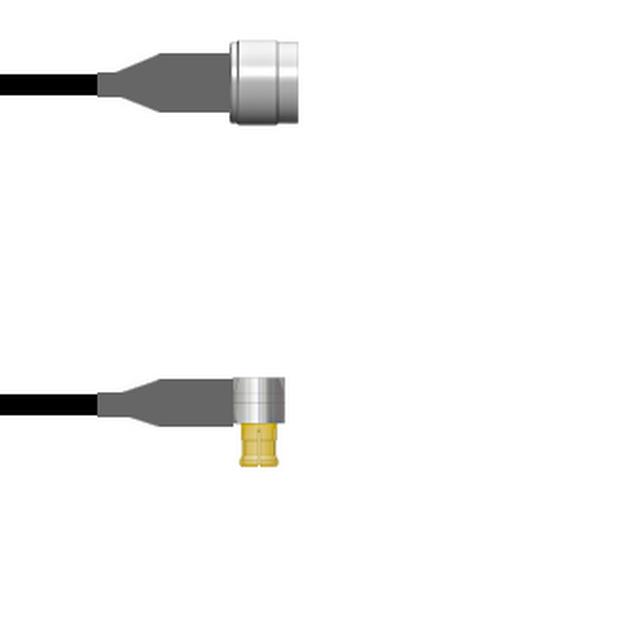

COAX CBL MCX TO N-TYPE 6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2I01A0003072i

Active

Amphenol Custom Cable

COAX CBL MCX TO N-TYPE 6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2I01A0003072i

1st Connector	Right Angle, MCX Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	6 ft
Length	72 in
Length	1.8 m
Overall Impedance	50 Ohms
Style	MCX to N-Type

Q-2I01A0 Series

Part	Frequency - Max [Max]	2nd Connector Mounting Type	2nd Connector	1st Connector Mounting Type	Style	1st Connector	Length	Length	Length	Cable Type	1st Contact Gender	2nd Contact Gender	Overall Impedance	Color	Features	Length [x]	Length [x]
Amphenol Custom Cable Q-2I01A00051.5M	6000 MHz	Free Hanging (In-Line)	N-Type Plug	Free Hanging (In-Line)	MCX to N-Type	MCX Plug Right Angle	59.1 in	4.9 ft	1.5 m	RG-316	Male	Male	50 Ohms	Copper	Shielded
Amphenol Custom Cable Q-2I01A0003001M	6000 MHz	Free Hanging (In-Line)	N-Type Plug	Free Hanging (In-Line)	MCX to N-Type	MCX Plug Right Angle	39.4 in	3.3 ft	1 m	RG-174	Male	Male	50 Ohms	Black	Shielded
Amphenol Custom Cable Q-2I01A0003002M	6000 MHz	Free Hanging (In-Line)	N-Type Plug	Free Hanging (In-Line)	MCX to N-Type	MCX Plug Right Angle	78.7 in	6.6 ft	2 m	RG-174	Male	Male	50 Ohms	Black	Shielded
Amphenol Custom Cable Q-2I01A0005024i	6000 MHz	Free Hanging (In-Line)	N-Type Plug	Free Hanging (In-Line)	MCX to N-Type	MCX Plug Right Angle	24 "		609.6 mm	RG-316	Male	Male	50 Ohms	Copper	Shielded
Amphenol Custom Cable Q-2I01A0003072i	6000 MHz	Free Hanging (In-Line)	N-Type Plug	Free Hanging (In-Line)	MCX to N-Type	MCX Plug Right Angle	72 in	6 ft	1.8 m	RG-174	Male	Male	50 Ohms	Black	Shielded
Amphenol Custom Cable Q-2I01A0005060i	6000 MHz	Free Hanging (In-Line)	N-Type Plug	Free Hanging (In-Line)	MCX to N-Type	MCX Plug Right Angle	5 '	5 ft	1.5 m	RG-316	Male	Male	50 Ohms	Copper	Shielded
Amphenol Custom Cable Q-2I01A0003018i	6000 MHz	Free Hanging (In-Line)	N-Type Plug	Free Hanging (In-Line)	MCX to N-Type	MCX Plug Right Angle				RG-174	Male	Male	50 Ohms	Black	Shielded	457.2 mm	457.2 mm
Amphenol Custom Cable Q-2I01A0005002M	6000 MHz	Free Hanging (In-Line)	N-Type Plug	Free Hanging (In-Line)	MCX to N-Type	MCX Plug Right Angle	78.7 in	6.6 ft	2 m	RG-316	Male	Male	50 Ohms	Copper	Shielded
Amphenol Custom Cable Q-2I01A0005003M	6000 MHz	Free Hanging (In-Line)	N-Type Plug	Free Hanging (In-Line)	MCX to N-Type	MCX Plug Right Angle	118.1 in	9.8 '	3 m	RG-316	Male	Male	50 Ohms	Copper	Shielded
Amphenol Custom Cable Q-2I01A0005072i	6000 MHz	Free Hanging (In-Line)	N-Type Plug	Free Hanging (In-Line)	MCX to N-Type	MCX Plug Right Angle	72 in	6 ft	1.8 m	RG-316	Male	Male	50 Ohms	Copper	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 77.27
		25	$ 75.75
		50	$ 74.24
		100	$ 72.72
		250	$ 71.20

Description

General part information

Q-2I01A0 Series

Cable Assembly Coaxial MCX to N-Type RG-174 72.0" (1.8m) 6.0'

Documents

Technical documentation and resources

No documents available
