5359-0-67-80-10-27-10-0
ActiveMill-Max Manufacturing Corp.

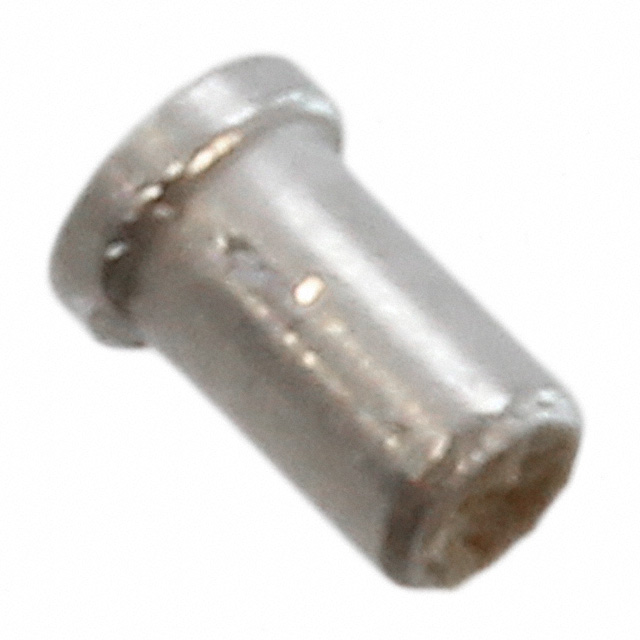

CONN PIN RCPT .012-.017 SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
5359-0-67-80-10-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT .012-.017 SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5359-0-67-80-10-27-10-0 |
|---|---|
| Accepts Pin Diameter [Max] | 0.017 in |
| Accepts Pin Diameter [Max] | 0.43 mm |
| Accepts Pin Diameter [Min] | 0.3 mm |
| Accepts Pin Diameter [Min] | 0.012 in |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Features | Knockout Bottom (Organic Fiber Plug®) |
| Flange Diameter [diameter] | 1.22 mm |
| Flange Diameter [diameter] | 0.048 in |
| Length - Overall [x] | 1.8 mm |
| Length - Overall [x] | 0.071 in |
| Mounting Hole Diameter [diameter] | 1.09 mm |
| Mounting Hole Diameter [diameter] | 0.043 in |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 0.028 in |
| Pin Hole Diameter [diameter] | 0.71 mm |
| Socket Depth | 1.8 mm |
| Socket Depth | 0.071 in |
| Tail Type | No Tail |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.42 | |
| 10 | $ 1.08 | |||
| 25 | $ 0.97 | |||
| 50 | $ 0.90 | |||
| 100 | $ 0.83 | |||
| 250 | $ 0.75 | |||
| 500 | $ 0.70 | |||
| 1000 | $ 0.65 | |||
| Digi-Reel® | 1 | $ 1.42 | ||
| 10 | $ 1.08 | |||
| 25 | $ 0.97 | |||
| 50 | $ 0.90 | |||
| 100 | $ 0.83 | |||
| 250 | $ 0.75 | |||
| 500 | $ 0.70 | |||
| 1000 | $ 0.65 | |||
| Tape & Reel (TR) | 3000 | $ 0.59 | ||
| 6000 | $ 0.57 | |||
| 9000 | $ 0.54 | |||
| 15000 | $ 0.53 | |||
Description
General part information
5359-0 Series
Pin Receptacle Connector 0.012" ~ 0.017" (0.30mm ~ 0.43mm) No Tail Solder
