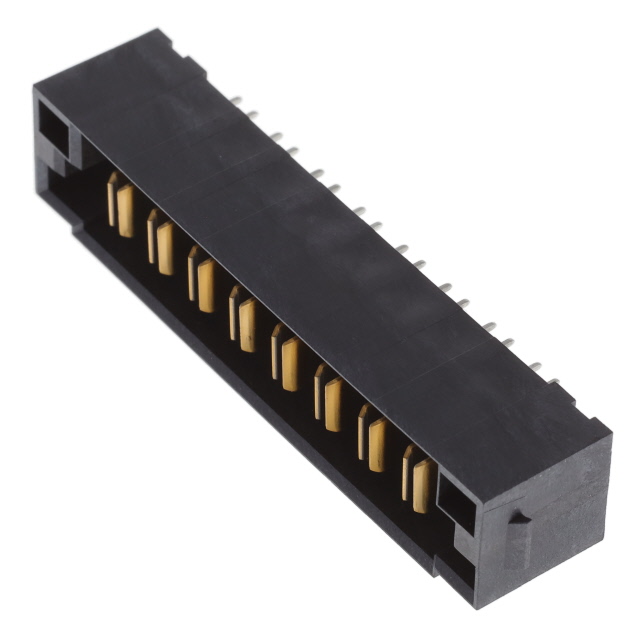

PET-08-01-S-VT

Active

Samtec Inc.

CONN HDR 8POS 6.35MM PCB SLDR

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 8POS 6.35MM PCB SLDR

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating	Termination	Fastening Type	Connector Type	Pitch [x]	Pitch [x]	Mounting Type	Contact Material	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Contact Finish	Color	Features
Samtec Inc. PET-08-01-L-VT	1025 V	Solder	Locking Ramp	Header Male Blades	0.25 in	6.35 mm	Through Hole	Copper Alloy	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	8	1	10 Áin	0.25 Ám	40 A	Gold	Black
Samtec Inc. PET-08-02-L-VT	1025 V	Solder	Locking Ramp	Header Male Blades	0.25 in	6.35 mm	Through Hole	Copper Alloy	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	8	1	10 Áin	0.25 Ám	40 A	Gold	Black
Samtec Inc. PET-08-01-S-VT	1025 V	Solder	Locking Ramp	Header Male Blades	0.25 in	6.35 mm	Through Hole	Copper Alloy	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	8	1			40 A	Gold	Black
Samtec Inc. PET-08-01-S-RA-SD	1025 V	Solder	Locking Ramp	Header Male Blades			Board Edge Right Angle Through Hole	Copper Alloy	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	8	1			40 A	Gold	Black	Mounting Flange
