163A17539X

Active

Amphenol CONEC

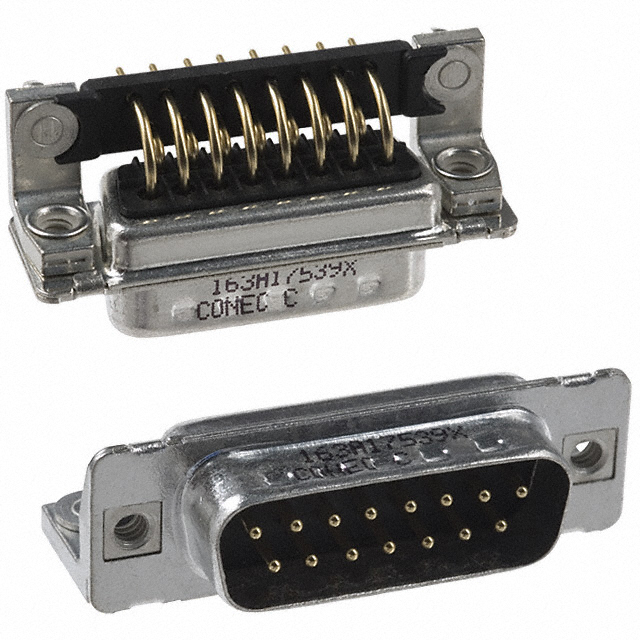

CONN D-SUB PLUG 15POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

163A17539X

Active

Amphenol CONEC

CONN D-SUB PLUG 15POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	163A17539X

Backset Spacing	0.283 in
Backset Spacing	7.2 mm
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents, Mounting Brackets, Board Lock
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	2
Termination	Solder
Voltage Rating	125 VDC

163A175 Series

Part	Contact Material	Number of Positions	Contact Type	Contact Finish Thickness	Voltage Rating	Material Flammability Rating	Number of Rows	Connector Type	Termination	Shell Size, Connector Layout	Backset Spacing	Backset Spacing	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Dielectric Material	Mounting Type	Current Rating (Amps)	Features	Flange Feature	Connector Style	Shell Size, Connector Layout	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]
Amphenol CONEC 163A17539X	Copper Alloy	15	Signal	Flash	125 VDC	UL94 V-0	2	Male Pins Plug	Solder	2	0.283 in	7.2 mm	Black	-55 °C	125 °C	Gold	Polybutylene Terephthalate (PBT) Glass Filled	Board Edge Right Angle Through Hole	7.5 A	Board Lock Grounding Indents Mounting Brackets	Housing/Shell (4-40)	D-Sub
Amphenol CONEC 163A17559X	Copper Alloy	37	Signal	Flash	125 VDC	UL94 V-0	2	Male Pins Plug	Solder		0.283 in	7.2 mm	Black	-55 °C	125 °C	Gold	Polybutylene Terephthalate (PBT) Glass Filled	Board Edge Right Angle Through Hole	7.5 A	Board Lock Grounding Indents Mounting Brackets	Housing/Shell (4-40)	D-Sub	4 (DC C)
Amphenol CONEC 163A17599X	Copper Alloy	37	Signal	Flash	125 VDC	UL94 V-0	2	Male Pins Plug	Solder		0.283 in	7.2 mm	Black	-55 °C	125 °C	Gold	Polybutylene Terephthalate (PBT) Glass Filled	Through Hole Right Angle	7.5 A	Board Lock Grounding Indents Mounting Brackets	Housing/Shell (M3)	D-Sub	4 (DC C)
Amphenol CONEC 163A17549X	Copper Alloy		Signal	Flash	125 VDC	UL94 V-0	2	Male Pins Plug	Solder		0.283 in	7.2 mm	Black	-55 °C	125 °C	Gold	Polybutylene Terephthalate (PBT) Glass Filled	Board Edge Right Angle Through Hole	7.5 A	Board Lock Grounding Indents Mounting Brackets	Housing/Shell (4-40)	D-Sub		B DB	3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 20.65
		10	$ 15.91
		25	$ 14.40
		40	$ 13.69
		80	$ 12.74
		230	$ 11.45
		440	$ 10.75
		945	$ 10.05

Description

General part information

163A175 Series

15 Position D-Sub Plug, Male Pins Connector
