UPLR220-026/T50

Active

Cinch Connectivity Solutions Trompeter

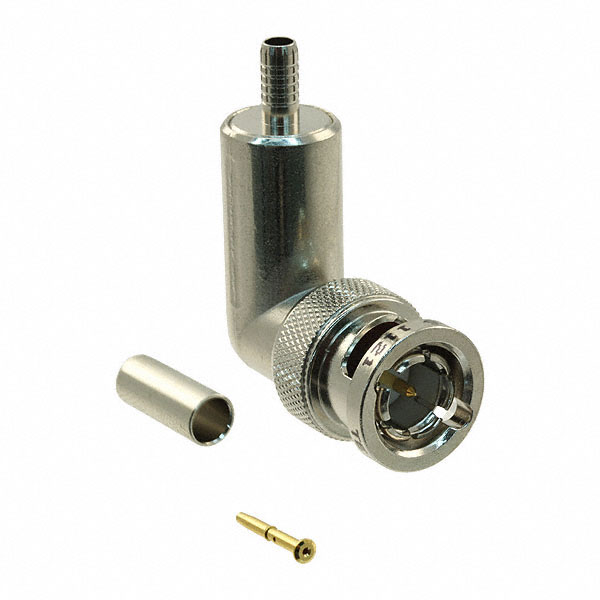

CONN BNC PLUG R/A 75 OHM 1=50

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN BNC PLUG R/A 75 OHM 1=50

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UPLR220-026/T50	UPLR220 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	Lucent 735A	Lucent 735A, Lucent 734A
Center Contact Plating	Gold	Gold
Connector Style	BNC	BNC
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Crimp	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	4 GHz	4 GHz
Housing Color	Silver	Silver
Impedance	75 Ohms	75 Ohms
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Crimp	Crimp
Voltage Rating	500 V	500 V

CONN BNC PLUG R/A 75 OHM CRIMP

Part	Connector Type	Number of Ports	Dielectric Material	Fastening Type	Housing Color	Body Finish	Mounting Type	Center Contact Plating	Contact Termination	Shield Termination	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Cable Group	Impedance	Body Material	Frequency - Max [Max]	Connector Style
Cinch Connectivity Solutions Trompeter UPLR220-026	Male Pin, Plug	1	Polytetrafluoroethylene (PTFE)	Bayonet Lock	Silver	Nickel	Free Hanging (In-Line), Right Angle	Gold	Crimp	Crimp	500 V	-65 ░C	165 °C	Lucent 735A	75 Ohms	Brass	4 GHz	BNC
Cinch Connectivity Solutions Trompeter UPLR220-026/T50	Male Pin, Plug	1	Polytetrafluoroethylene (PTFE)	Bayonet Lock	Silver	Nickel	Free Hanging (In-Line), Right Angle	Gold	Crimp	Crimp	500 V	-65 ░C	165 °C	Lucent 735A	75 Ohms	Brass	4 GHz	BNC
Cinch Connectivity Solutions Trompeter UPLR220-025	Male Pin, Plug	1	Polytetrafluoroethylene (PTFE)	Bayonet Lock	Silver	Nickel	Free Hanging (In-Line), Right Angle	Gold	Crimp	Crimp	500 V	-65 ░C	165 °C	Lucent 734A	75 Ohms	Brass	4 GHz	BNC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 957.89

General part information

BNC Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line), Right Angle Crimp

Technical documentation and resources

No documents available
