TC-100-NF

Active

Amphenol Times Microwave Systems

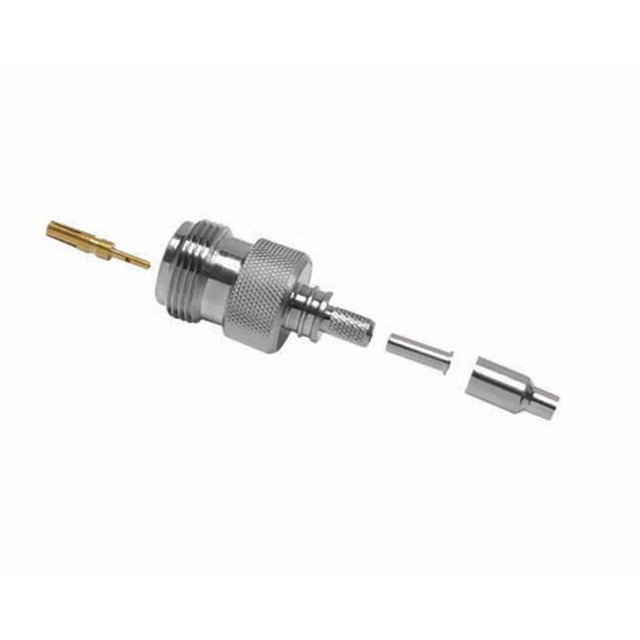

N-FEMALE (JACK) CRIMP CONNECTOR,

Search across all available documentation for this part.

Active

Amphenol Times Microwave Systems

N-FEMALE (JACK) CRIMP CONNECTOR,

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

N Type Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	TC-100-NF	TC-100 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	LMR-100A	LMR-100A, LMR-100
Center Contact Material	Phosphor Bronze	Phosphor Bronze
Center Contact Plating	Gold	Gold
Connector Style	N Type	N Type
Connector Type	Female Socket, Jack	Female Socket, Jack, Male Pin, Plug
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	3 GHz	3 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	155 °C	155 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shield Termination	Crimp	Crimp
Voltage Rating	335 V	335 V

N-FEMALE (JACK) CRIMP CONNECTOR,

Part	Body Material	Center Contact Plating	Cable Group	Voltage Rating	Connector Type	Impedance	Body Finish	Connector Style	Frequency - Max [Max]	Dielectric Material	Housing Color	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Contact Termination	Shield Termination	Number of Ports	Mating Cycles
Amphenol Times Microwave Systems TC-100-NF	Brass	Gold	LMR-100A	335 V	Female Socket, Jack	50 Ohms	Nickel	N Type	3 GHz	Polytetrafluoroethylene (PTFE)	Silver	Free Hanging (In-Line)	155 °C	-55 °C	Phosphor Bronze	Solder	Crimp	1	500
Amphenol Times Microwave Systems TC-100-NM	Brass	Gold	LMR-100	335 V	Male Pin, Plug	50 Ohms	Nickel	N Type	3 GHz	Polytetrafluoroethylene (PTFE)	Silver	Free Hanging (In-Line)	155 °C	-55 °C	Phosphor Bronze	Solder	Crimp	1	500
