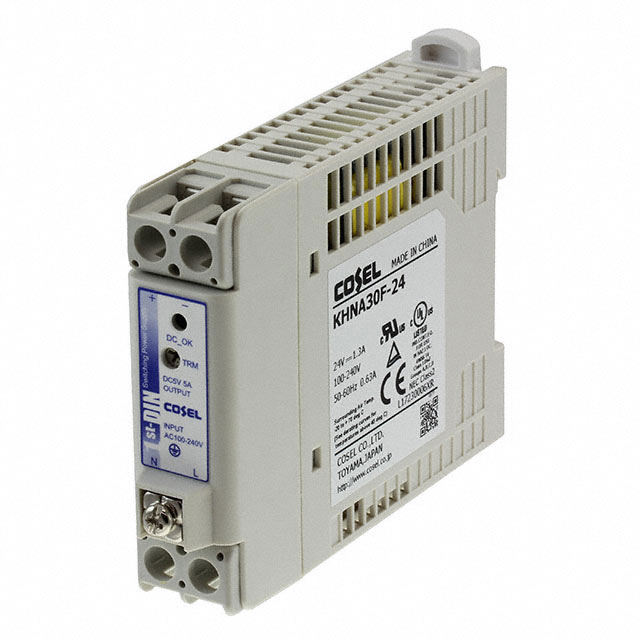

KHNA30F-24

Active

Cosel USA, Inc.

AC/DC DIN RAIL SUPPLY 24V 30W

Search across all available documentation for this part.

Active

Cosel USA, Inc.

AC/DC DIN RAIL SUPPLY 24V 30W

Technical Specifications

Parameters and characteristics for this part

Specification	KHNA30F-24

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial)
Approval Agency	TUV, CE, cULus, cURus
Current - Output (Max) [Max]	1.3 A
DC Voltage - Input (Max) [Max]	370 V
DC Voltage - Input (Min) [Min]	120 V
Features	PFC, Remote On/Off, Universal Input, Adjustable Output
Input Type	AC or DC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Power (Watts)	30 W
Size / Dimension [x]	121.2 mm
Size / Dimension [x]	4.77 in
Size / Dimension [y]	1.97 "
Size / Dimension [y]	50 mm
Size / Dimension [z]	4.88 "
Size / Dimension [z]	124 mm
Standard Number	60950-1
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Applications	Approval Agency	DC Voltage - Input (Max) [Max]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Features	Input Type	Voltage - Isolation	Voltage - Output 1	Number of Outputs	Standard Number	Power (Watts)	Current - Output (Max) [Max]	DC Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Efficiency
Cosel USA, Inc. KHNA30F-24	ITE (Commercial)	CE cULus cURus TUV	370 V	85 VAC	264 VAC	Adjustable Output PFC Remote On/Off Universal Input	AC or DC	3000 V	24 V	1	60950-1	30 W	1.3 A	120 V	-20 C	70 °C	121.2 mm	4.77 in	4.88 "	124 mm	1.97 "	50 mm
Cosel USA, Inc. KHNA30F-12	ITE (Commercial)	CE cULus cURus TUV	370 V	85 VAC	264 VAC	Adjustable Output PFC Remote On/Off Universal Input	AC or DC	3000 V	12 V	1	60950-1	30 W	2.3 A	120 V	-20 C	70 °C	121.2 mm	4.77 in	4.88 "	124 mm	1.97 "	50 mm	88.5 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC DIN RAIL SUPPLY 24V 30W
