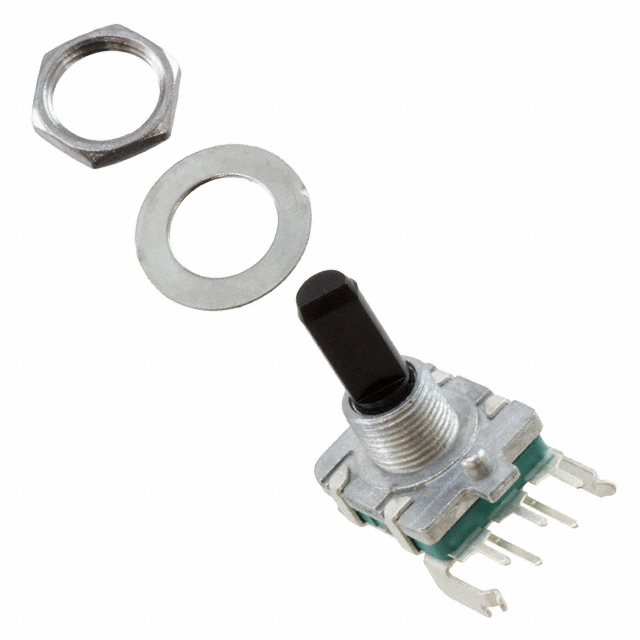

PEC16-2015F-S0024

Active

Bourns Inc.

ROTARY ENCODER MECHANICAL 24PPR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PEC16-2015F-S0024

Active

Bourns Inc.

ROTARY ENCODER MECHANICAL 24PPR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PEC16-2015F-S0024

Actuator Type	Flatted End
Actuator Type [diameter]	6 mm
Built in Switch	True
Detent	False
Encoder Type	Mechanical
Mounting Type	PCB Through Hole, Panel
Orientation	Right Angle
Output Type	Quadrature (Incremental)
Pulses per Revolution	24 per Revolution
Rotational Life (Cycles Min) [Min]	100K
Termination Style	PC Pin

PEC16 Series

Part	Termination Style	Actuator Type [diameter]	Actuator Type	Orientation	Encoder Type	Rotational Life (Cycles Min) [Min]	Mounting Type	Output Type	Pulses per Revolution
Bourns Inc. PEC16-2120F-S0012	PC Pin	6 mm	Flatted End	Right Angle	Mechanical	100K	Panel PCB Through Hole	Quadrature (Incremental)	12 pulses per revolution
Bourns Inc. PEC16-4120F-S0012	PC Pin	6 mm	Flatted End	Vertical	Mechanical	100K	Panel PCB Through Hole	Quadrature (Incremental)	12 pulses per revolution
Bourns Inc. PEC16-4230F-N0024	PC Pin	6 mm	Flatted End	Vertical	Mechanical	100K	Panel PCB Through Hole	Quadrature (Incremental)	24 per Revolution
Bourns Inc. PEC16-4220F-S0024	PC Pin	6 mm	Flatted End	Vertical	Mechanical	100K	Panel PCB Through Hole	Quadrature (Incremental)	24 per Revolution
Bourns Inc. PEC16-2025F-N0024	PC Pin	6 mm	Flatted End	Right Angle	Mechanical	100K	Panel PCB Through Hole	Quadrature (Incremental)	24 per Revolution
Bourns Inc. PEC16-2115F-S0012	PC Pin	6 mm	Flatted End	Right Angle	Mechanical	100K	Panel PCB Through Hole	Quadrature (Incremental)	12 pulses per revolution
Bourns Inc. PEC16-4025F-N0024	PC Pin	6 mm	Flatted End	Vertical	Mechanical	100K	Panel PCB Through Hole	Quadrature (Incremental)	24 per Revolution
Bourns Inc. PEC16-4030F-N0024	PC Pin	6 mm	Flatted End	Vertical	Mechanical	100K	Panel PCB Through Hole	Quadrature (Incremental)	24 per Revolution
Bourns Inc. PEC16-2015F-S0024	PC Pin	6 mm	Flatted End	Right Angle	Mechanical	100K	Panel PCB Through Hole	Quadrature (Incremental)	24 per Revolution
Bourns Inc. PEC16-2020F-N0024	PC Pin	6 mm	Flatted End	Right Angle	Mechanical	100K	Panel PCB Through Hole	Quadrature (Incremental)	24 per Revolution

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.01
		5	$ 1.73
		10	$ 1.62
		25	$ 1.48
		50	$ 1.39
		100	$ 1.30
		250	$ 1.19
		450	$ 1.13
		950	$ 1.05

Description

General part information

PEC16 Series

Rotary Encoder Mechanical 24 Quadrature (Incremental) Right Angle
