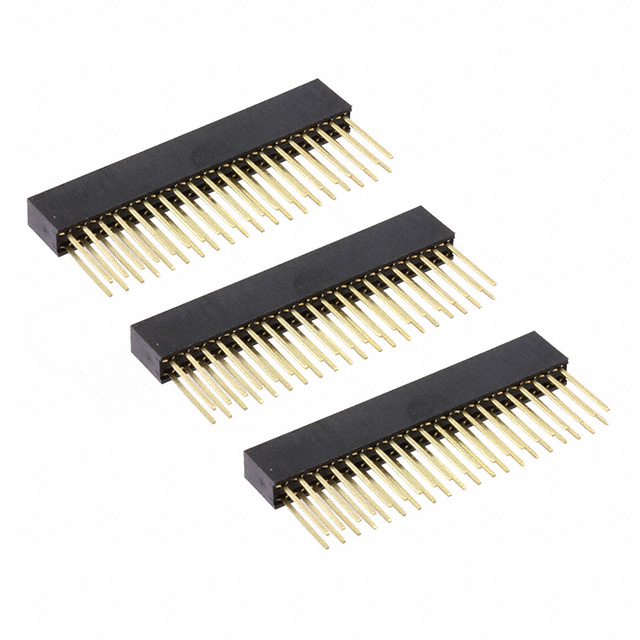

920-0200-01

Active

Schmartboard, Inc.

CONN HDR 40POS PCB R/A 3PC

Search across all available documentation for this part.

Active

Schmartboard, Inc.

CONN HDR 40POS PCB R/A 3PC

Technical Specifications

Parameters and characteristics for this part

CONN HDR 40POS PCB R/A 3PC

Part	Number of Rows	Contact Type	Number of Positions	Termination	Connector Type	Insulation Color	Contact Shape	Number of Positions Loaded	Fastening Type	Mounting Type
Schmartboard, Inc. 920-0200-01	2	Female Socket	40	Solder	Header	Black	Square	All	Push-Pull	Through Hole, Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.00

General part information

40 Position Header Connector Through Hole, Right Angle

Technical documentation and resources
