ECS-HCMPI-0402LRQ-2R0M-T

Active

ECS Inc.

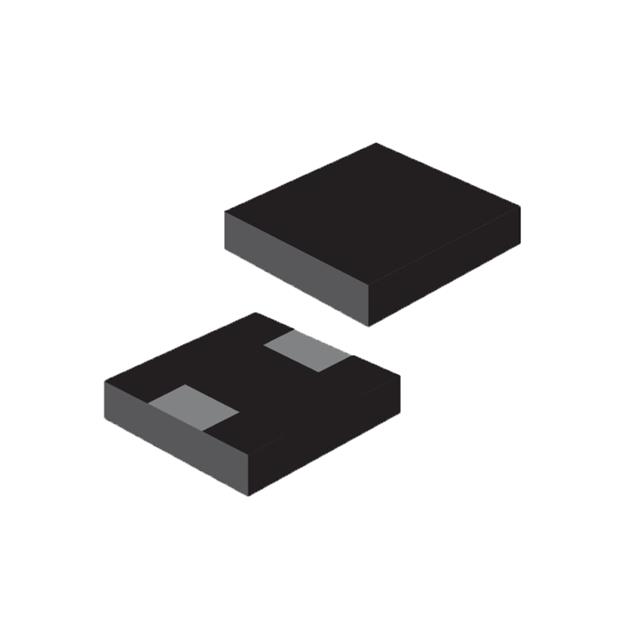

FIXED IND 2UH 8.2A 0.0233OHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ECS-HCMPI-0402LRQ-2R0M-T

Active

ECS Inc.

FIXED IND 2UH 8.2A 0.0233OHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 1.00

Description

General part information

ECS-HCMPI-0402LRQ Series

2 µH Shielded Molded Inductor 8.2 A 23.3mOhm Max Nonstandard

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ECS-HCMPI-0402LRQ-2R0M-T	ECS-HCMPI-0402LRQ Series

Current - Saturation (Isat)	5 A	4.4 - 12.5 A
Current Rating (Amps)	8.2 A	5.5 - 13.2 A
DC Resistance (DCR)	-	13.4 - 15.8 mOhm
DC Resistance (DCR) [Max]	23.3 mOhm	6.8 - 38.3 mOhm
Height - Seated (Max) [Max] [z]	2.1 mm	2.1 mm
Height - Seated (Max) [Max] [z]	0.083 "	0.083 "
Inductance	2 µH	0.68 - 820 µH
Inductance Frequency - Test	100 kHz	100 kHz
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Nonstandard	Nonstandard
Ratings	AEC-Q200	AEC-Q200
Shielding	Shielded	Shielded
Size / Dimension [x]	0.161 in	0.161 in
Size / Dimension [x]	4.1 mm	4.1 mm
Size / Dimension [y]	4.1 mm	4.1 mm
Size / Dimension [y]	0.161 in	0.161 in
Supplier Device Package	0402	0402
Tolerance	20 %	20 %
Type	Molded	Molded

ECS-HCMPI-0402LRQ Series

FIXED IND 2UH 8.2A 0.0233OHM SMD

Part	Current - Saturation (Isat)	Operating Temperature [Max]	Operating Temperature [Min]	Inductance Frequency - Test	Package / Case	Mounting Type	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Inductance	Supplier Device Package	Shielding	DC Resistance (DCR) [Max]	Tolerance	Current Rating (Amps)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ratings	DC Resistance (DCR)
ECS Inc. ECS-HCMPI-0402LRQ-2R0M-T	5 A	125 °C	-40 °C	100 kHz	Nonstandard	Surface Mount	Molded	0.161 in	4.1 mm	4.1 mm	0.161 in	2 µH	0402	Shielded	23.3 mOhm	20 %	8.2 A	2.1 mm	0.083 "	AEC-Q200
