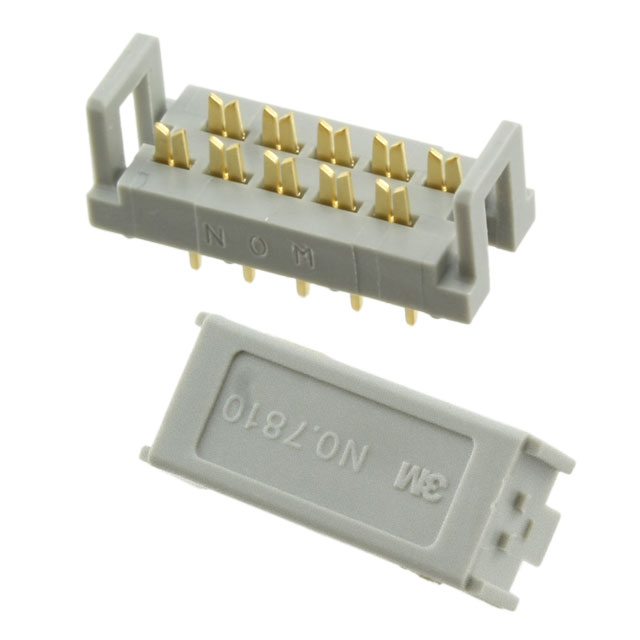

7810-0000PR
ActiveIDC CONNECTOR, BOARD IN CONNECTOR, 2.54 MM, 2 ROW, 10 CONTACTS, CABLE MOUNT, THROUGH HOLE MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
7810-0000PR
ActiveIDC CONNECTOR, BOARD IN CONNECTOR, 2.54 MM, 2 ROW, 10 CONTACTS, CABLE MOUNT, THROUGH HOLE MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 7810-0000PR |
|---|---|
| Board-Side Pitch | 0.1 in |
| Board-Side Pitch | 2.54 mm |
| Cable Pitch | 1.27 mm |
| Cable Pitch | 0.05 in |
| Cable Termination | IDC |
| Color | Gray |
| Connector Type | Ribbon Cable, DIP Header |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Features | Feed Through |
| Mounting Type | Through Hole |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Row Spacing [x] | 0.1 in |
| Wire Gauge | 28 AWG, Solid or Stranded, 30 AWG, Solid, 26 AWG, Stranded |
7810 Series
| Part | Mounting Type | Contact Finish Thickness | Number of Positions | Color | Connector Type | Contact Finish | Cable Termination | Number of Rows | Board-Side Pitch | Board-Side Pitch | Features | Cable Pitch | Cable Pitch | Wire Gauge | Number of Positions Loaded | Row Spacing [x] | Row Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | Through Hole | Flash | 10 | Gray | DIP Header Ribbon Cable | Gold | IDC | 2 | 0.1 in | 2.54 mm | Feed Through | 1.27 mm | 0.05 in | 26 AWG Stranded 28 AWG Solid or Stranded 30 AWG Solid | All | 0.1 in | 2.54 mm |
3M (TC) | Through Hole | Flash | 10 | Gray | DIP Header Ribbon Cable | Gold | IDC | 2 | 0.1 in | 2.54 mm | Feed Through | 1.27 mm | 0.05 in | 26 AWG Stranded 28 AWG Solid or Stranded 30 AWG Solid | All | 0.1 in | 2.54 mm |
3M (TC) | Through Hole | 10 | Gray | DIP Header Ribbon Cable | Tin | IDC | 2 | 0.1 in | 2.54 mm | Feed Through | 1.27 mm | 0.05 in | 26 AWG Stranded 28 AWG Solid or Stranded 30 AWG Solid | All | 0.1 in | 2.54 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
7810 Series
The 7810-0000PR is a 10-way 0.100 x 0.100-inch Wire-to-board Connector with 2.8mm solder tail, gold-plated beryllium copper contacts and solder termination. This 78XX series wiremount PCB connector is glass filled polyester insulated, fits standard 0.100 x 0.100-inch header layout, uses less board area than 4-row design. 7.3 mm terminated height for applications requiring low-profile off the board, solder bumps facilitate board cleaning.
