913S-2-5-00300

Active

CnC Tech, LLC

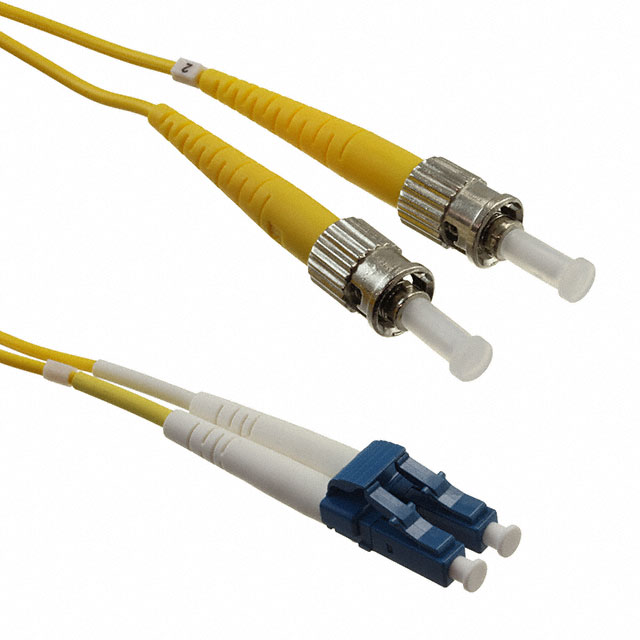

FIBER OPTIC CBL LC-ST DUPLEX 3M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

913S-2-5-00300

Active

CnC Tech, LLC

FIBER OPTIC CBL LC-ST DUPLEX 3M

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 13.23

Description

General part information

913S-2-5 Series

Cable Fiber Optic LC Duplex To ST (2) 9/125 9.8' (3.0m)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	913S-2-5-00300	913S-2-5 Series

1st Connector	LC Duplex	LC Duplex
2nd Connector	ST (2)	ST (2)
Cable Diameter [diameter]	2 mm	2 mm
Cable Diameter [diameter]	0.08 in	0.08 in
Color - Cable	Yellow	Yellow
Color - Connectors	Blue, Yellow	Blue, Yellow
Features	-	Plenum
Fiber Type	9/125	9/125
Insertion Loss	0.3 dB	0.3 dB
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Length - Overall	-	5 m
Length - Overall	-	16.4 ft
Length - Overall [x]	3 m	1 - 25 m
Length - Overall [x]	9.8 ft	3.3 - 82 ft
Ratings	-	OFNP
Return Loss	50 dB	50 dB
Type	Singlemode, Duplex	Singlemode, Duplex

913S-2-5 Series

FIBER OPTIC CBL LC-ST DUPLEX 1M

Part	Ratings	Insertion Loss	Features	Fiber Type	Return Loss	Color - Cable	2nd Connector	Type	Color - Connectors	Cable Diameter [diameter]	Cable Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	1st Connector	Jacket (Insulation) Material	Length - Overall	Length - Overall
CnC Tech, LLC 913S-2-5-00100-PL	OFNP	0.3 dB	Plenum	9/125	50 dB	Yellow	ST (2)	Duplex, Singlemode	Blue, Yellow	2 mm	0.08 in	1 m	3.3 ft	LC Duplex
CnC Tech, LLC 913S-2-5-00200-PL	OFNP	0.3 dB	Plenum	9/125	50 dB	Yellow	ST (2)	Duplex, Singlemode	Blue, Yellow	2 mm	0.08 in	2 m	6.6 ft	LC Duplex
CnC Tech, LLC 913S-2-5-01500-PL	OFNP	0.3 dB	Plenum	9/125	50 dB	Yellow	ST (2)	Duplex, Singlemode	Blue, Yellow	2 mm	0.08 in	15 m	49.2 '	LC Duplex
CnC Tech, LLC 913S-2-5-02500-PL	OFNP	0.3 dB	Plenum	9/125	50 dB	Yellow	ST (2)	Duplex, Singlemode	Blue, Yellow	2 mm	0.08 in	25 m	82 ft	LC Duplex
CnC Tech, LLC 913S-2-5-00300		0.3 dB		9/125	50 dB	Yellow	ST (2)	Duplex, Singlemode	Blue, Yellow	2 mm	0.08 in	3 m	9.8 ft	LC Duplex	Poly-Vinyl Chloride (PVC)
CnC Tech, LLC 913S-2-5-01000-PL	OFNP	0.3 dB	Plenum	9/125	50 dB	Yellow	ST (2)	Duplex, Singlemode	Blue, Yellow	2 mm	0.08 in	10 m	32.8 ft	LC Duplex
CnC Tech, LLC 913S-2-5-00500		0.3 dB		9/125	50 dB	Yellow	ST (2)	Duplex, Singlemode	Blue, Yellow	2 mm	0.08 in			LC Duplex	Poly-Vinyl Chloride (PVC)	5 m	16.4 ft
CnC Tech, LLC 913S-2-5-00200		0.3 dB		9/125	50 dB	Yellow	ST (2)	Duplex, Singlemode	Blue, Yellow	2 mm	0.08 in	2 m	6.6 ft	LC Duplex	Poly-Vinyl Chloride (PVC)
CnC Tech, LLC 913S-2-5-02000		0.3 dB		9/125	50 dB	Yellow	ST (2)	Duplex, Singlemode	Blue, Yellow	2 mm	0.08 in	20 m	65.6 ft	LC Duplex	Poly-Vinyl Chloride (PVC)
CnC Tech, LLC 913S-2-5-01500		0.3 dB		9/125	50 dB	Yellow	ST (2)	Duplex, Singlemode	Blue, Yellow	2 mm	0.08 in	15 m	49.2 '	LC Duplex	Poly-Vinyl Chloride (PVC)
